MC-V4

MAIN FEATURE
1.Quartz oscillator fixed frequency design, easy to operate.

2."PiloTone & Noise-lock" dual-squelch circuit for Squelch,eliminate staccato,avoid the interference from outside environment.

3.The ring around the cartridge will be lighted when the microphone is turned on.

4.There is an alarm for low power, separated output and mixed output; the whole unit shall be connected with power mixer or power amplifier.

5. More than 80dB noise automatically avoidable, wide frequency range voice and easily use and store, convenient to carry and mufti-frequency for large sized conference use.

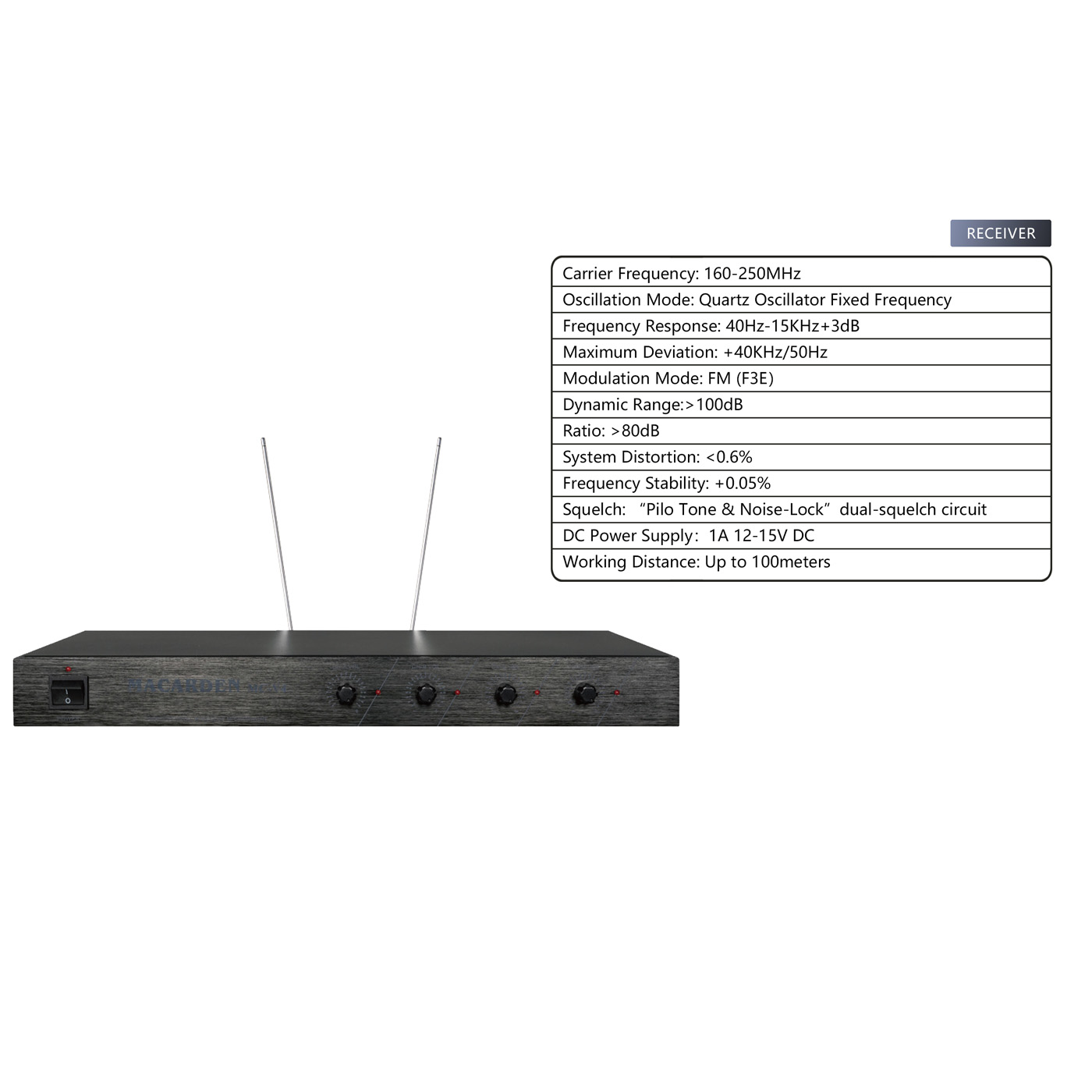

RECEIVER

Carrier Frequency: 160-250MHz

Oscillation Mode: Quartz Oscillator Fixed Frequency

Frequency Response: 40Hz-15KHz+3dB

Maximum Deviation: +40KHz/50Hz

Modulation Mode: FM (F3E）

Dynamic Range:>100dB

Ratio: >80dB

System Distortion: <0.6%

Frequency Stability: +0.05%

Squelch: “Pilo Tone & Noise-Lock”dual-squelch circuit

DC Power Supply：1A 12-15V DC

Working Distance: Up to 100meters

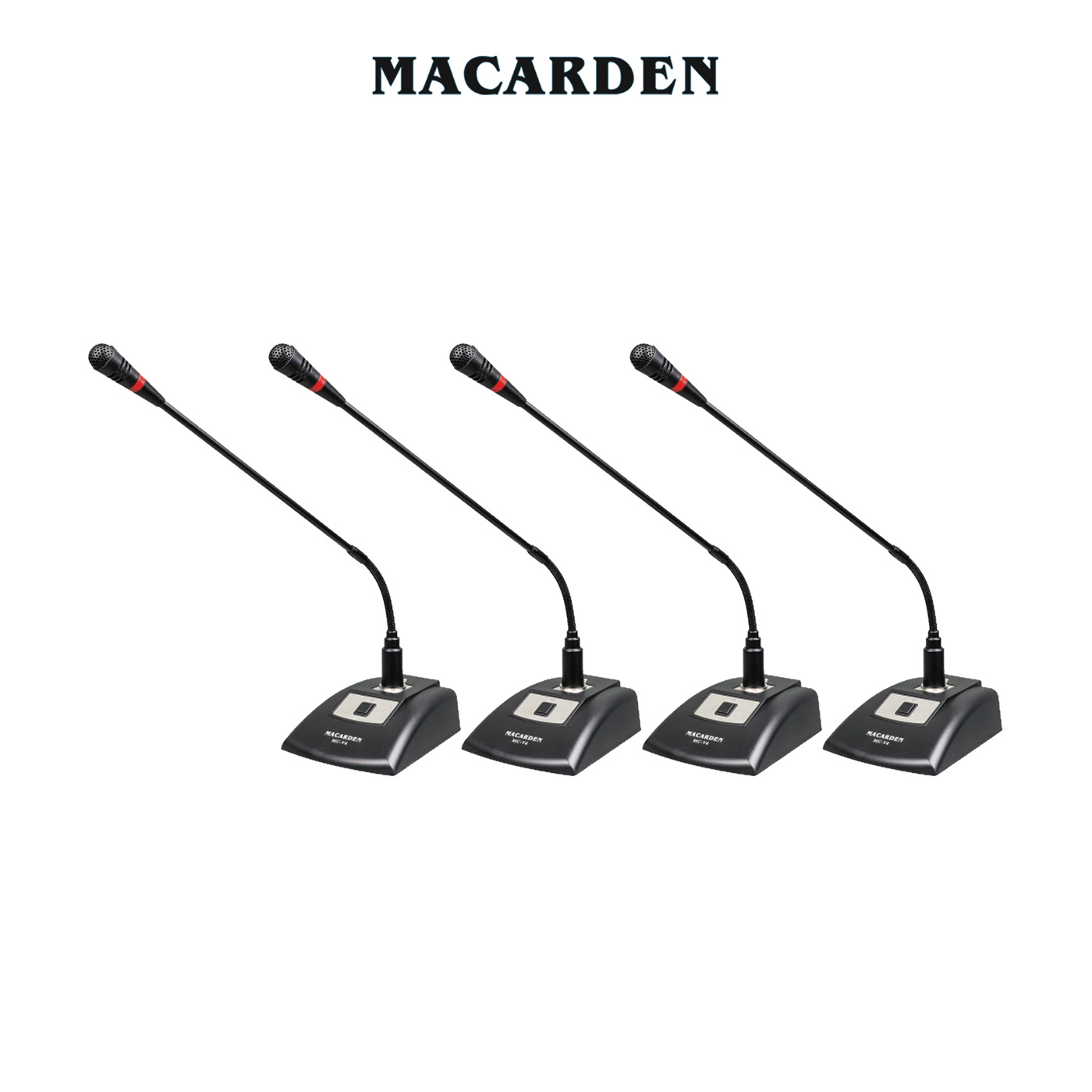

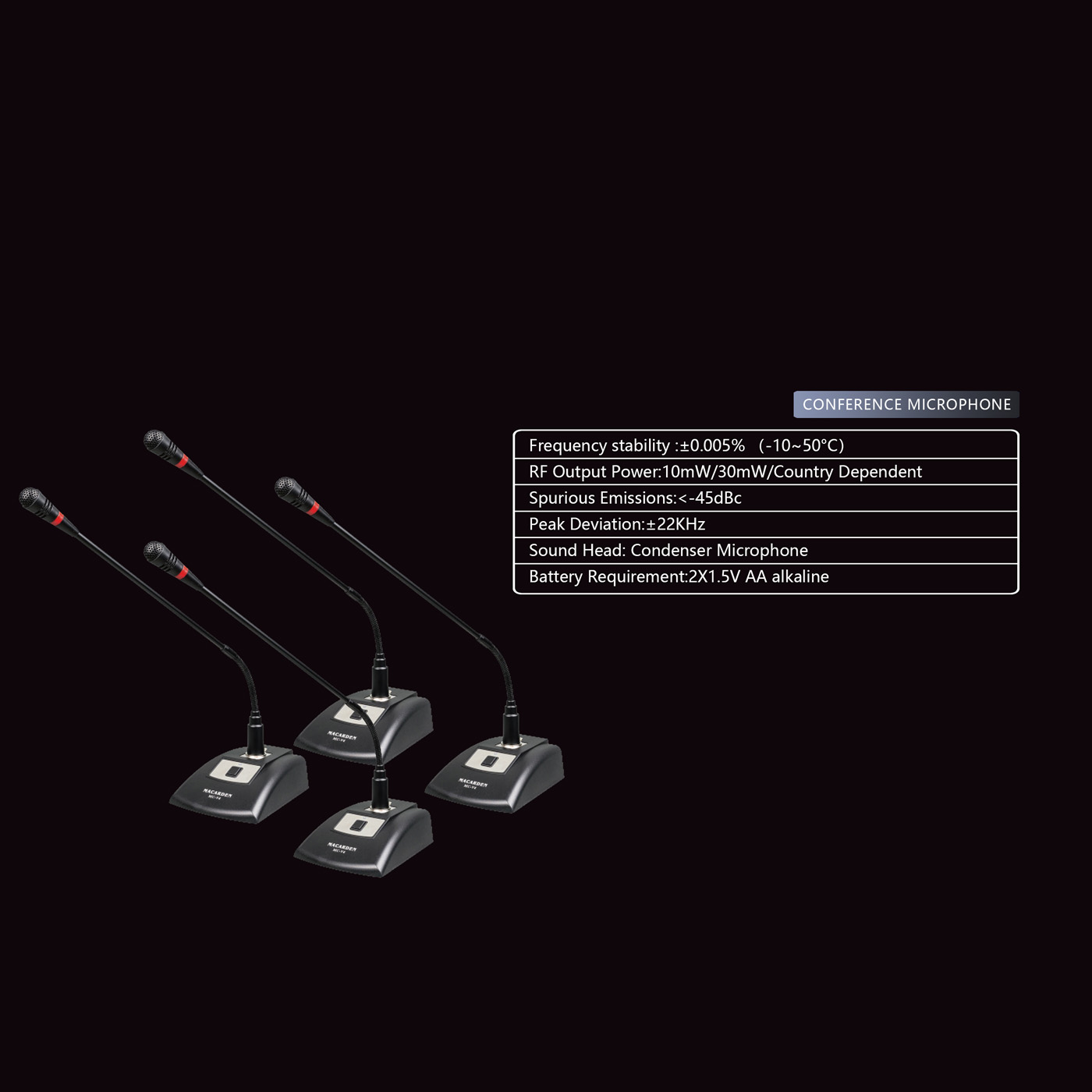

CONFERENCE MICROPHONE

Frequency stability :±0.005% （-10~50°C）
RF Output Power:10mW/30mW/Country Dependent

Spurious Emissions:<-45dBc

Peak Deviation:±22KHz

Sound Head: Condenser Microphone

Battery Requirement:2X1.5V AA alkaline
