1. UHF Band, Four Channel designed
2. Adopt the PLL Synthesized control technique, preset 200 non-interfered channels, 5 sets system (20 mics) can be used simultaneously without interference.

2. Transfer data to transmitter by infrared. CPU control with LCD display makes operation easy and performance outstanding .
4. Audio compressing-expanding technology ,the machine can reduce the noises and increase the dynamic range.
5. Back-sound restrain function can avoid back-sound scream.
6.The receiver adopt multilevel high frequency enlargement .so and has the high sensitivity .
7.Multilevel noise supervisory circuit .Special with the tone locked system make the machine have a strong anti-jamming characteristics
8.Using high gain antenna, the space availability is more than 100 meters at the clearing.

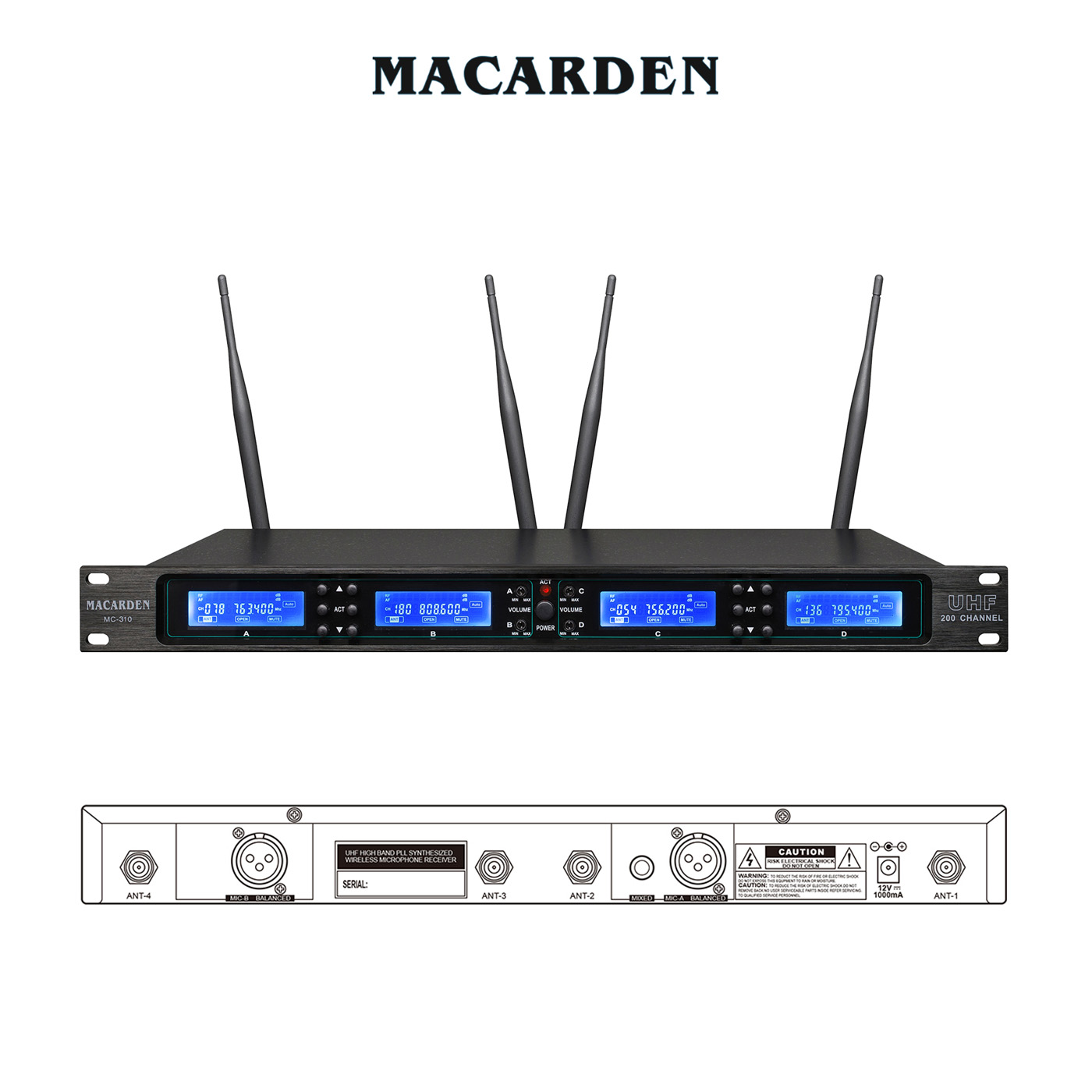

9.EIA standard 1U dual channel rack-mountable receiver with metal classics.

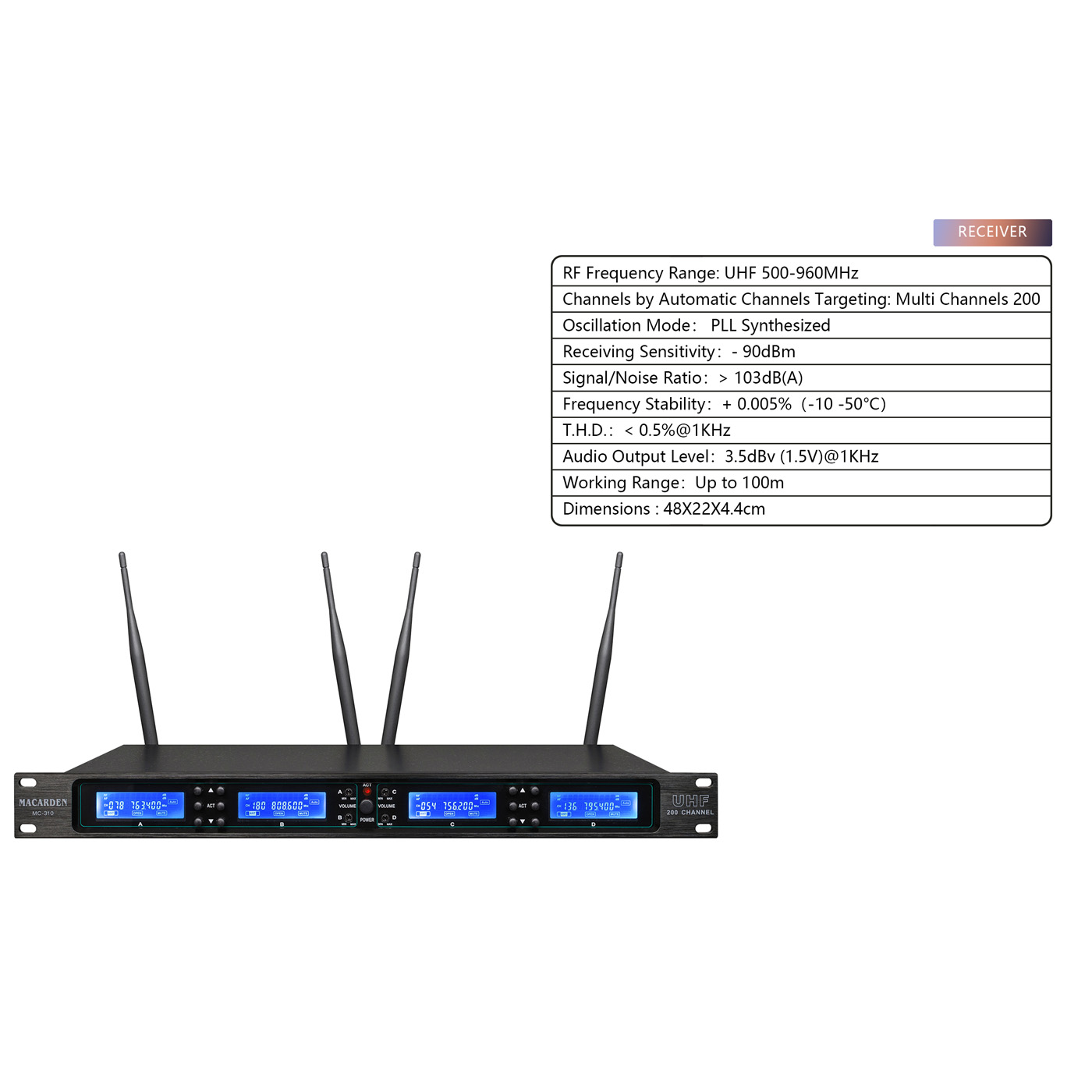

RF Frequency Range: UHF 500-960MHz

Channels by Automatic Channels Targeting: Multi Channels 200

Oscillation Mode: PLL Synthesized

Receiving Sensitivity:- 90dBm

Signal/Noise Ratio:> 103dB(A)

Frequency Stability:+ 0.005%(-10 -50°C)

T.H.D.:< 0.5%@1KHz

Audio Output Level:3.5dBv (1.5V)@1KHz

Working Range:Up to 100m

Dimensions : 48X22X4.4cm


Frequency Regulation: IR Sync

RF Output Power: 10mW/30mW/country dependent

Max Deviation:+68KHz

Spurious Emissions:<-55dBc

Bodypack Transmitter Sound Cartridge: Condenser Microphone

Battery Requirement:2X1.5V AA alkaline

andheld Microphone Sound Cartridge: Dynamic Microphone

Handheld Transmitter Size: 27.5X5.2 cm

Bodypack Transmitter Size: 11X6.7X2cm
