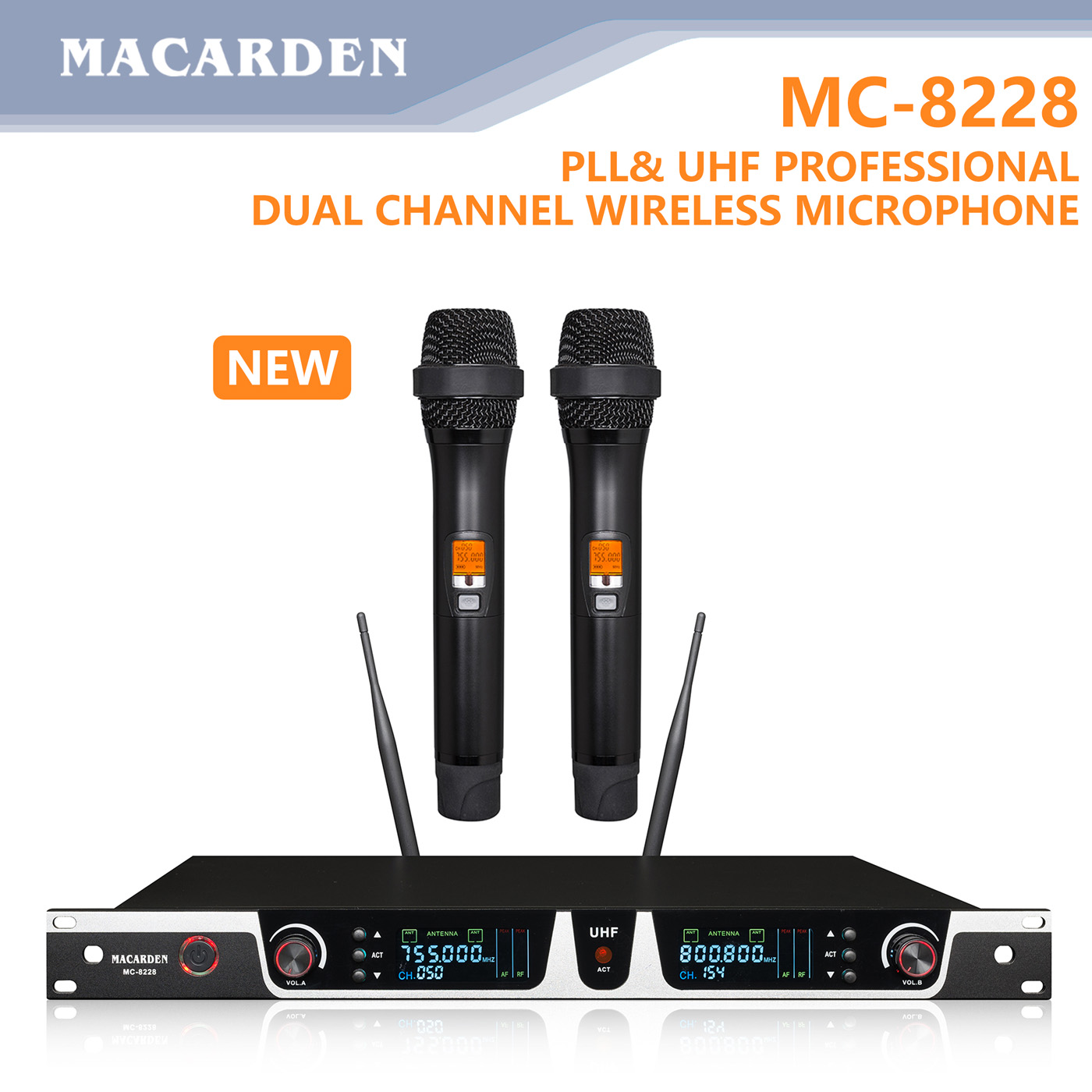

MC-8228

MAIN FEATURES
1. Using UHF 500-960MHz band to avert interfering frequency.
2. Adopt advanced digital pilot technology, single-clip circuit, preset 200 frequencies for your selection, with a working distance at 80 meters in ideal condition.
3. Adopt the PLL-Synthesized control technique, adjustable antenna can enhance the receiving signal.
4. Automatic frequency scan feature searches for available frequencies.
5. It can adjust the power (High/Low) in handheld microphone.
6. Working signals and frequency are displayed in both receiver and transmitter.
7. Designed for KTV rooms and stage use.

RECEIVER

RF Frequency Range: UHF 500-960MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode： PLL Synthesized
Receiving Sensitivity：- 90dBm
Signal/Noise Ratio：> 103dB(A)
Frequency Stability：+ 0.005%（-10 -50°C）
T.H.D.：< 0.5%@1KHz
Audio Output Level：3.5dBv (1.5V)@1KHz
Working Range：Up to 80m
Dimensions : 48X22X4.4cm

TRANSMITTER

Frequency Regulation: IR Sync
RF Output Power: 10mW/30mW/country dependent
Max Deviation:+68KHz
Spurious Emissions:<-55dBc
Handheld Microphone Sound Cartridge: Dynamic Microphone
Bodypack Transmitter Sound Cartridge: Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
Handheld Transmitter Size: 25.5X5.2 cm
Bodypack Transmitter Size: 11X6.5X2cm
