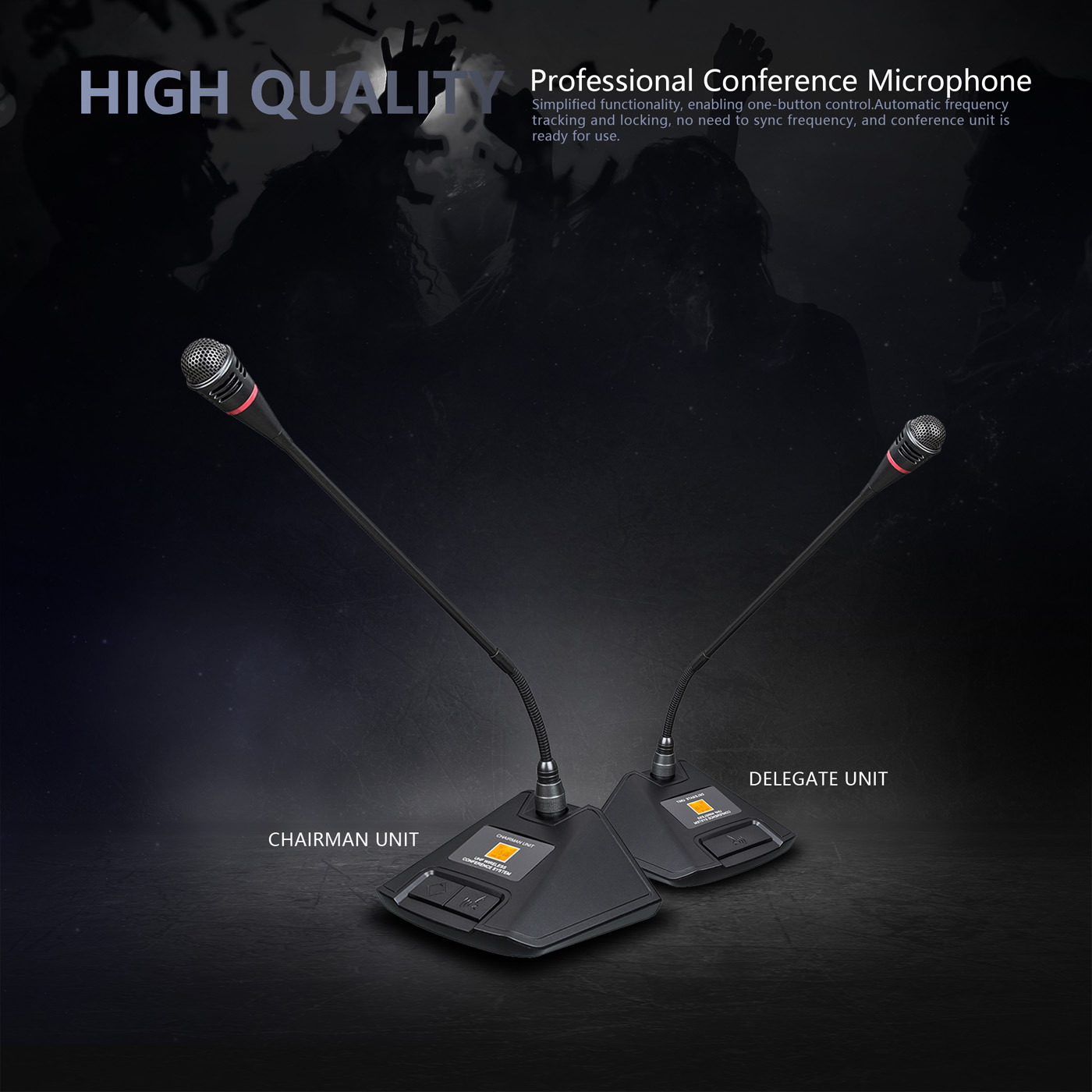

MC-8199

MAIN FEATURES:

1. Easy engineering installation, no need to debug for the conference hall/studio with the capacity of 99 attendees or less, allowing for quick engineering installation.

2.Simplified functionality, enabling one-button control.

3.Automatic frequency tracking and locking, no need to sync frequency, and conference unit is ready for use.

4.Built-in 60 WIFI communication channels, subject to no mutual interference in simultaneous use of multiple devices.

5.Built-in 520 voicing channels for the entire avoidance of interference.

6. Built-in advanced frequency scanning algorithm, automatically select the proper frequency without interference.

6.Intelligent voicing permission control. Allow for the simultaneous voicing of 4 attendees and support for FIFO of 99 attendees at most.

COMPREHENSIVE PERFORMANCE

Operation voltage: 2A DC 12V-14V

Operation current: 600mAH

Power consumption: 5W

Receiving Sensitivity: -100dBM

Audio output voltage: 1 V

Adjacent channel interference suppression: >60dB

Core directing: Cardioid

Pick-up sensitivity: >20dBM(1V)

Transmitting power: > +10dBM(10MV)

Microphone power consumption: 120mAH

Receiving effective distance: 100 meters

Audio response: 50Hz - 15KHz

Frequency stability: + 0.001%

SNR S/N:> 100dB

Distortion THD: <0.01%
