MC-878

MAIN FEATURES

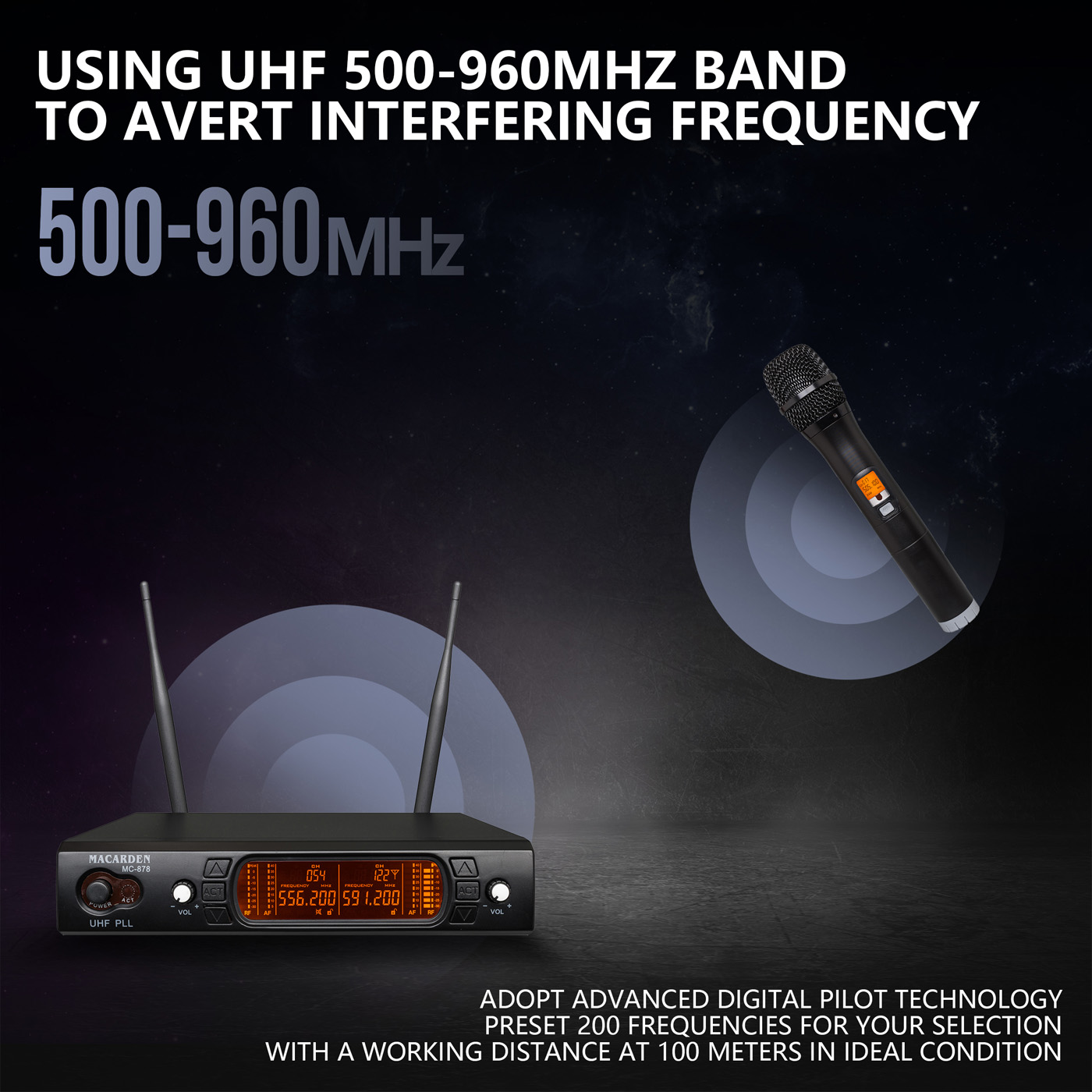

1. Using UHF 740~814.3 MHz band to avert interfering frequency. 200 select-able channel. Transfer datas to transmitter by infrared.

2. It can adjust the power (High/Low) by the handheld microphone.

3. Receiver with function of auto-searching clean and non-interfered frequency.

4. Incorporates new patented PLL synthesized oscillator technology for stability.

5.  Dynamic range and frequency response as well as Ultra High Speed MCU signal analyzer to control noise and shock for perfect tone.

6. Combined with MACARDEN famous Crystal Clear Sound technology and traditional professional product durability, the MC-878 emerges as the qualified Best Choice for a UHF Dual Wireless Microphone System.

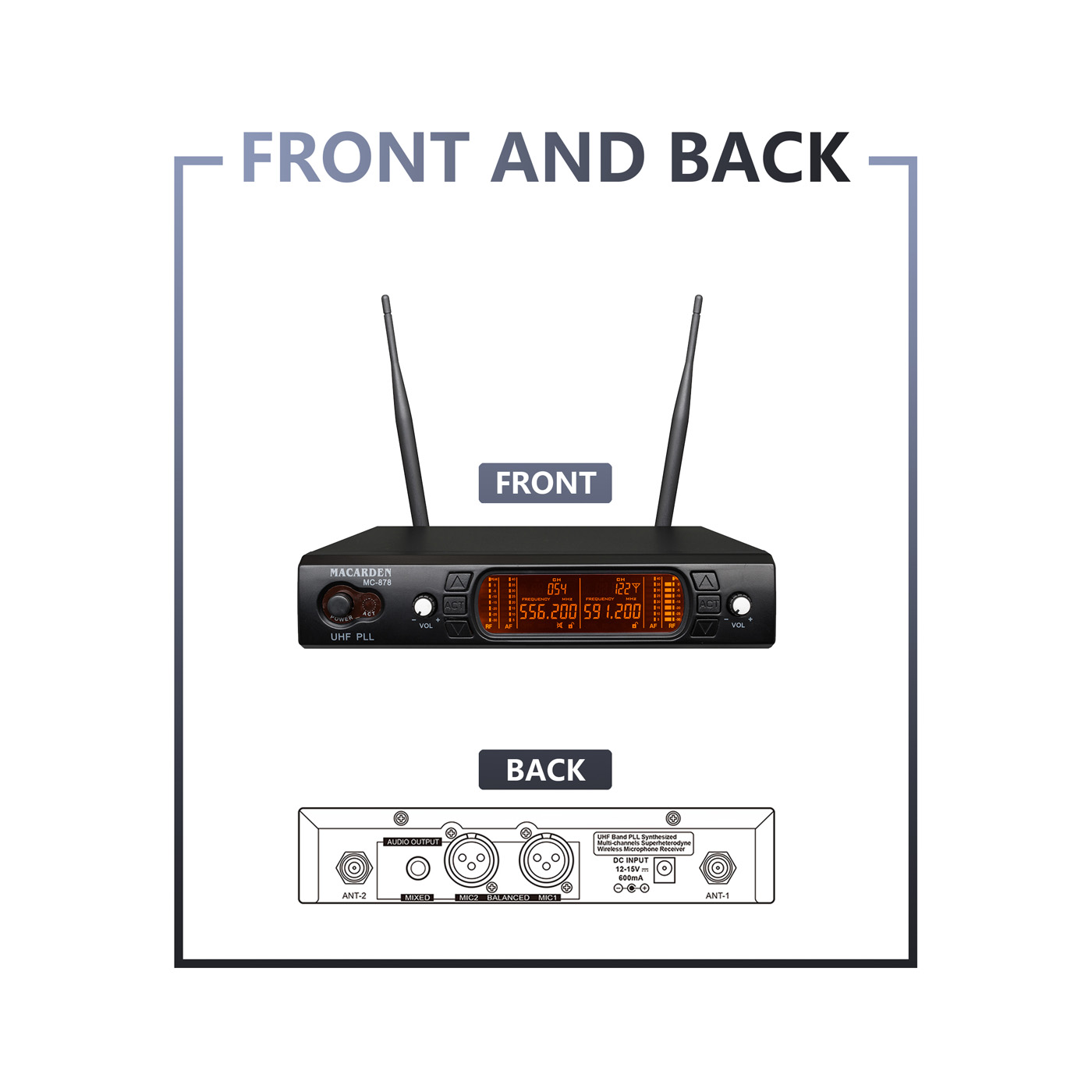

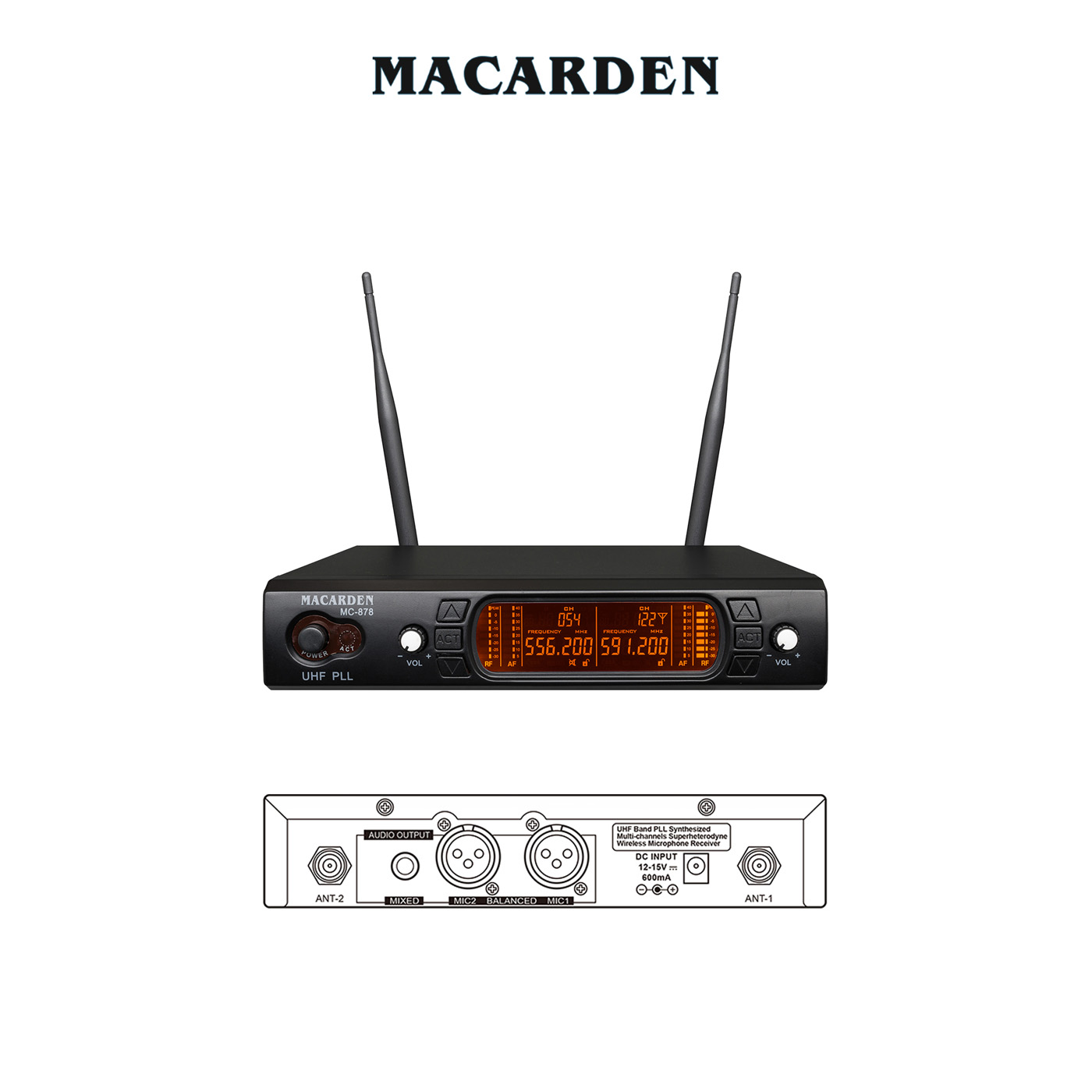

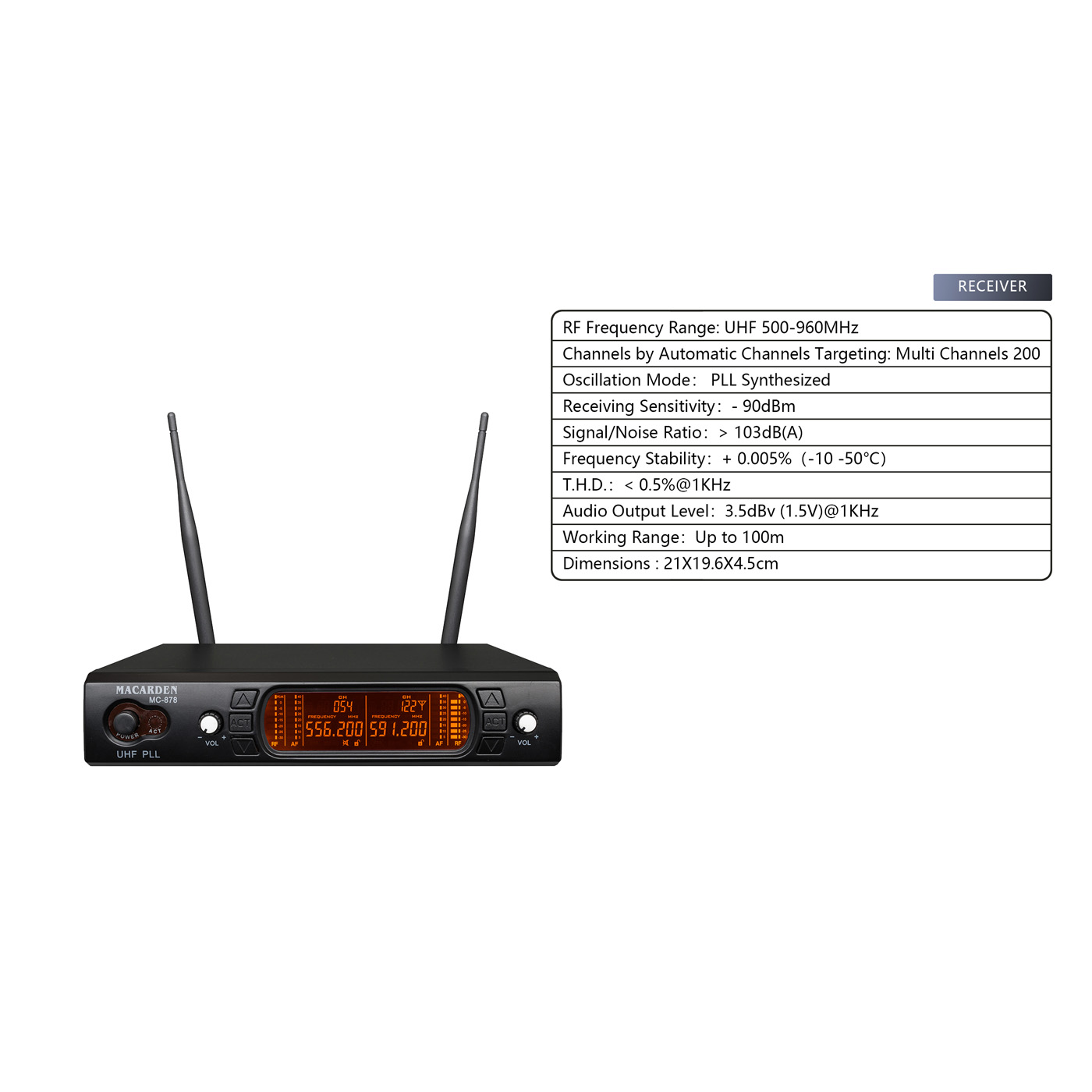

RECEIVER

RF Frequency Range: UHF 500-960MHz

Channels by Automatic Channels Targeting: Multi Channels 200

Oscillation Mode： PLL Synthesized

Receiving Sensitivity：- 90dBm

Signal/Noise Ratio：> 103dB(A)

Frequency Stability：+ 0.005%（-10 -50°C）

T.H.D.：< 0.5%@1KHz

Audio Output Level：3.5dBv (1.5V)@1KHz

Working Range：Up to 100m

Dimensions : 21X19.6X4.5cm

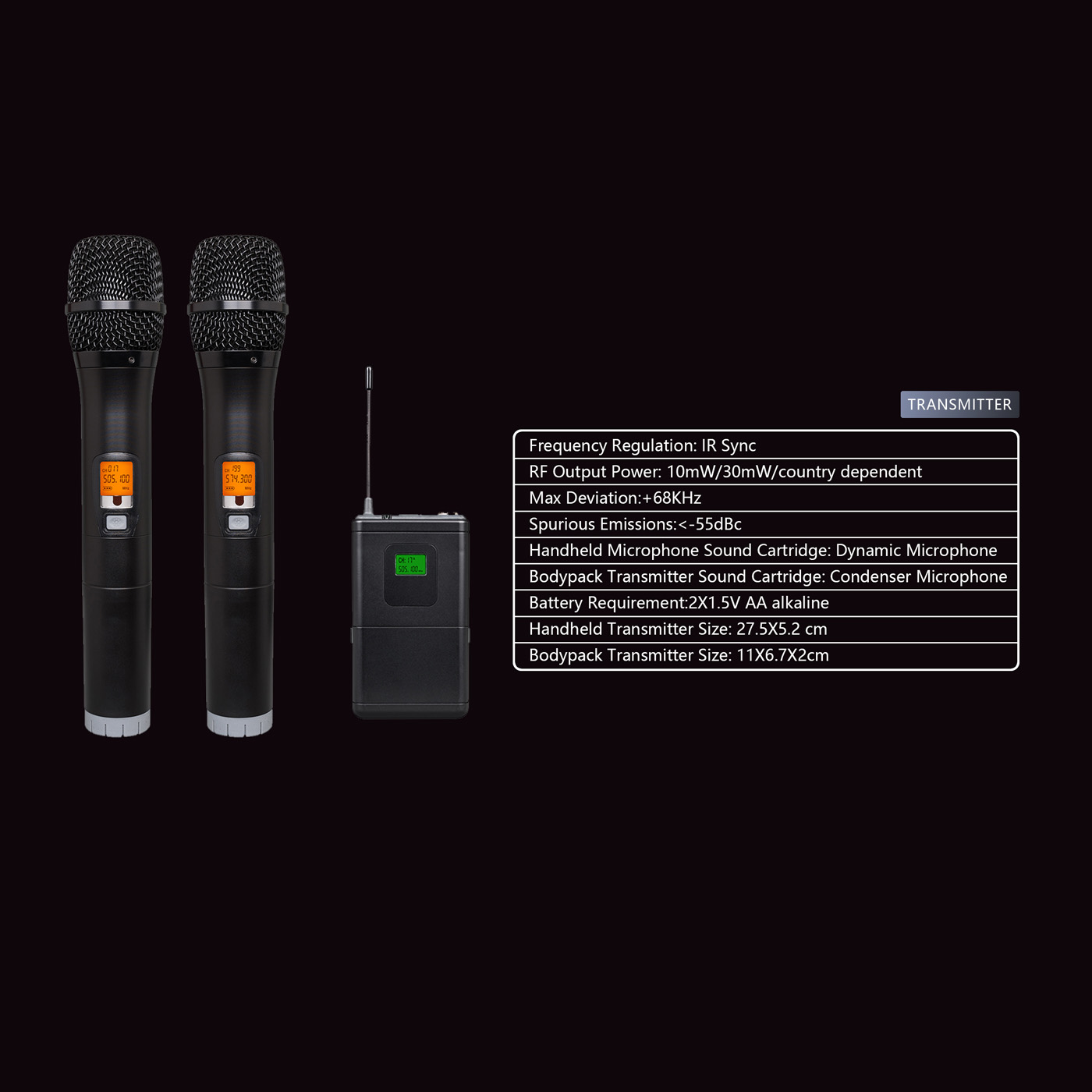

TRANSMITTER

Frequency Regulation: IR Sync

RF Output Power: 10mW/30mW/country dependent

Max Deviation:+68KHz

Spurious Emissions:<-55dBc

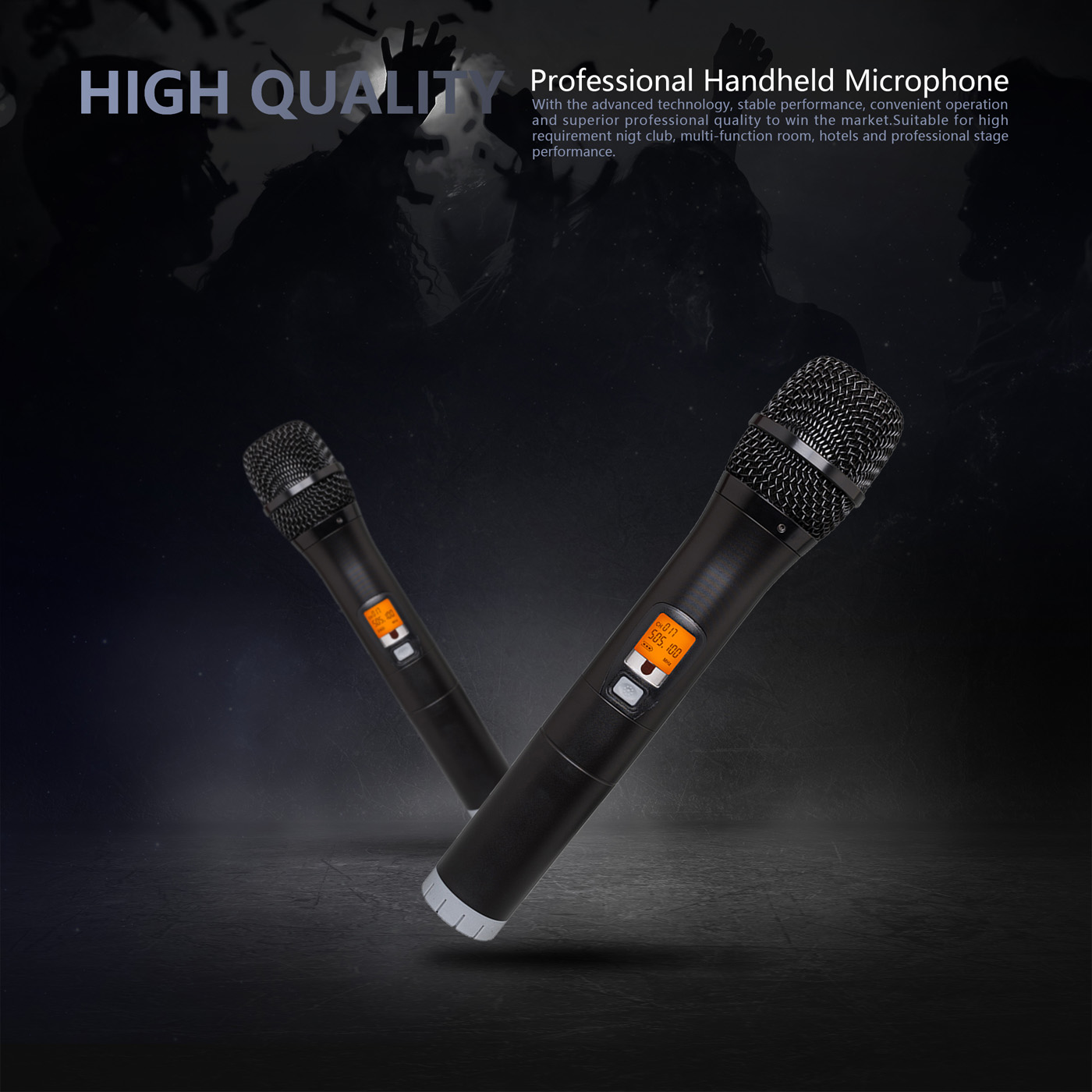

Handheld Microphone Sound Cartridge: Dynamic Microphone

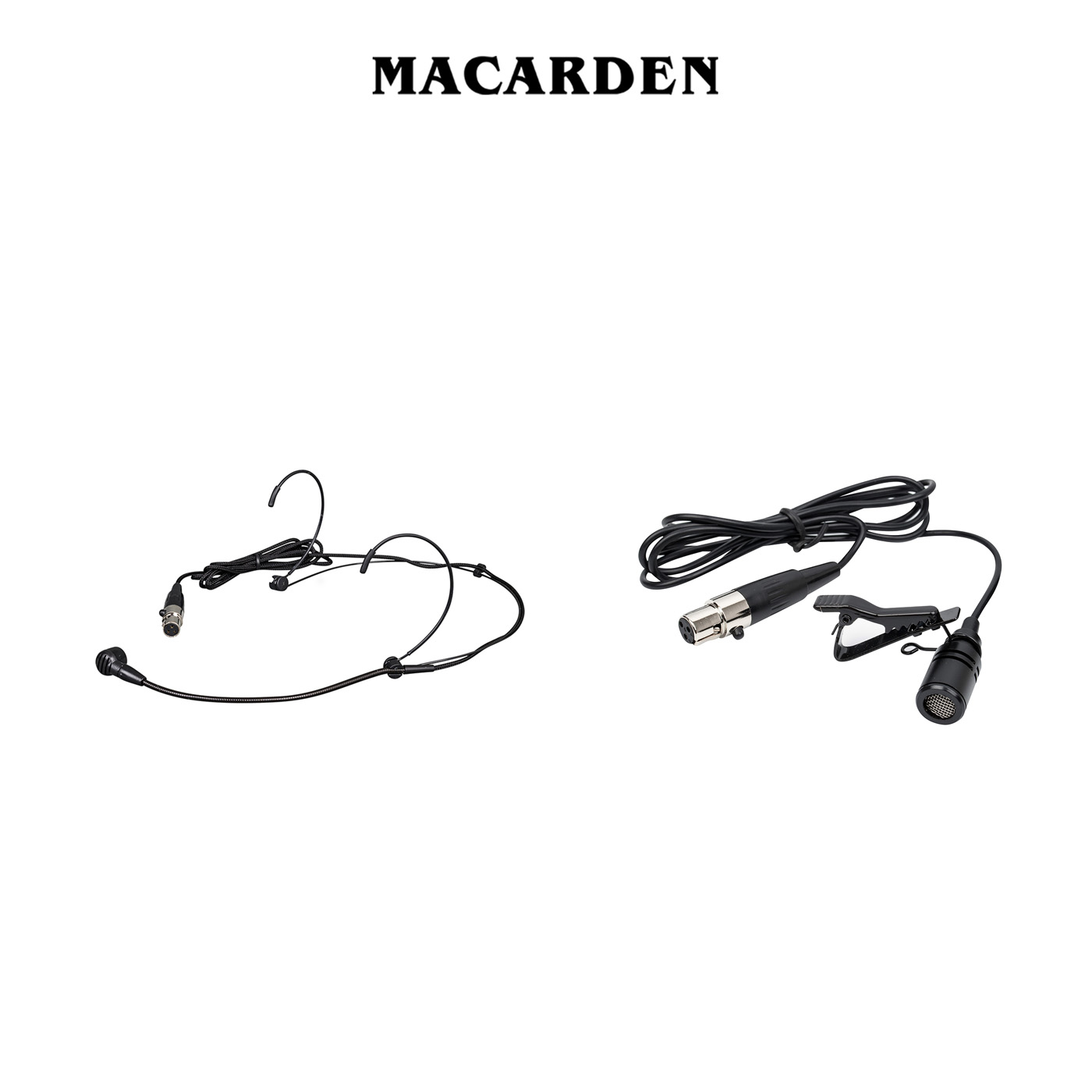

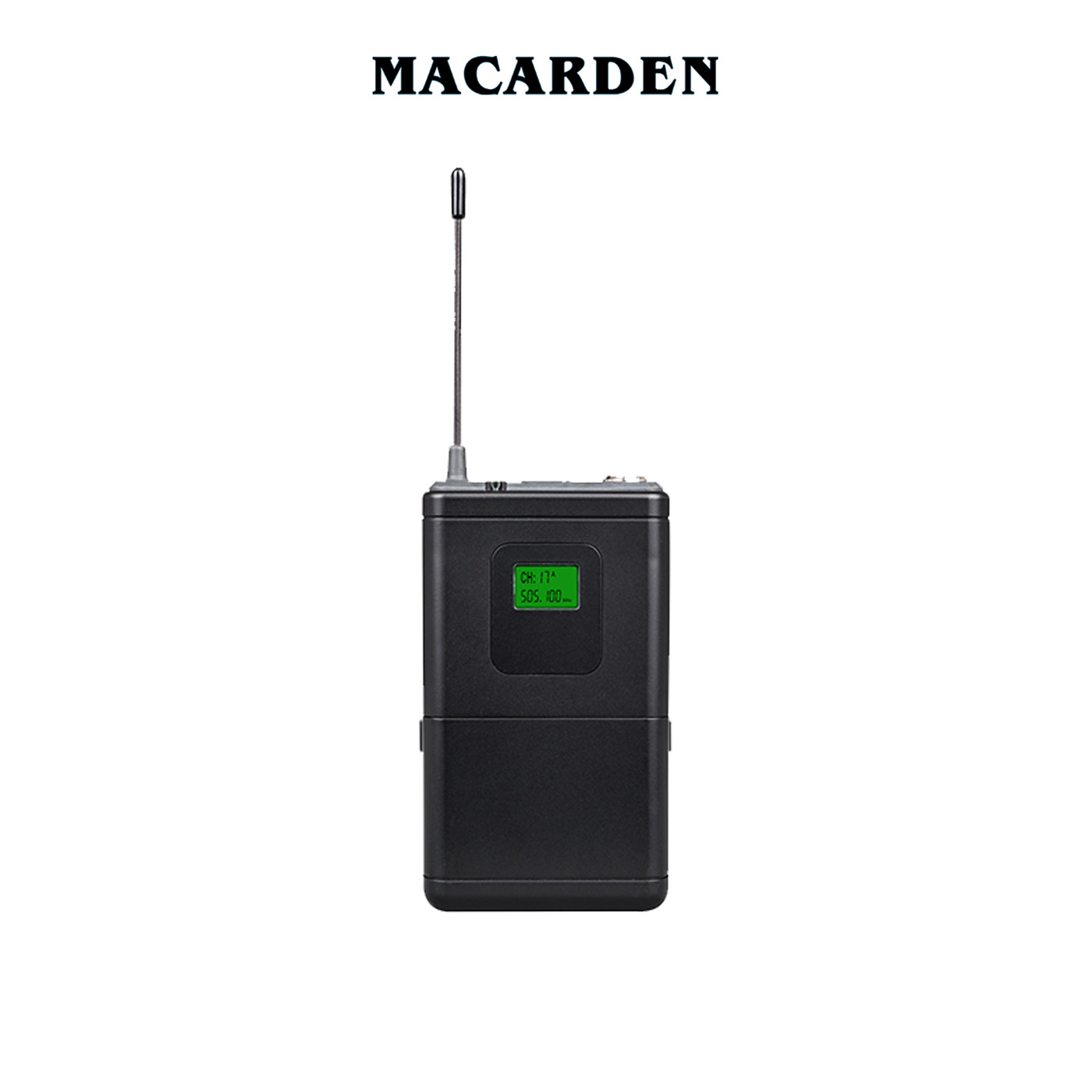

Bodypack Transmitter Sound Cartridge: Condenser Microphone

Battery Requirement:2X1.5V AA alkaline

Handheld Transmitter Size: 26.5X5.2 cm

Bodypack Transmitter Size: 11X6.7X2cm
