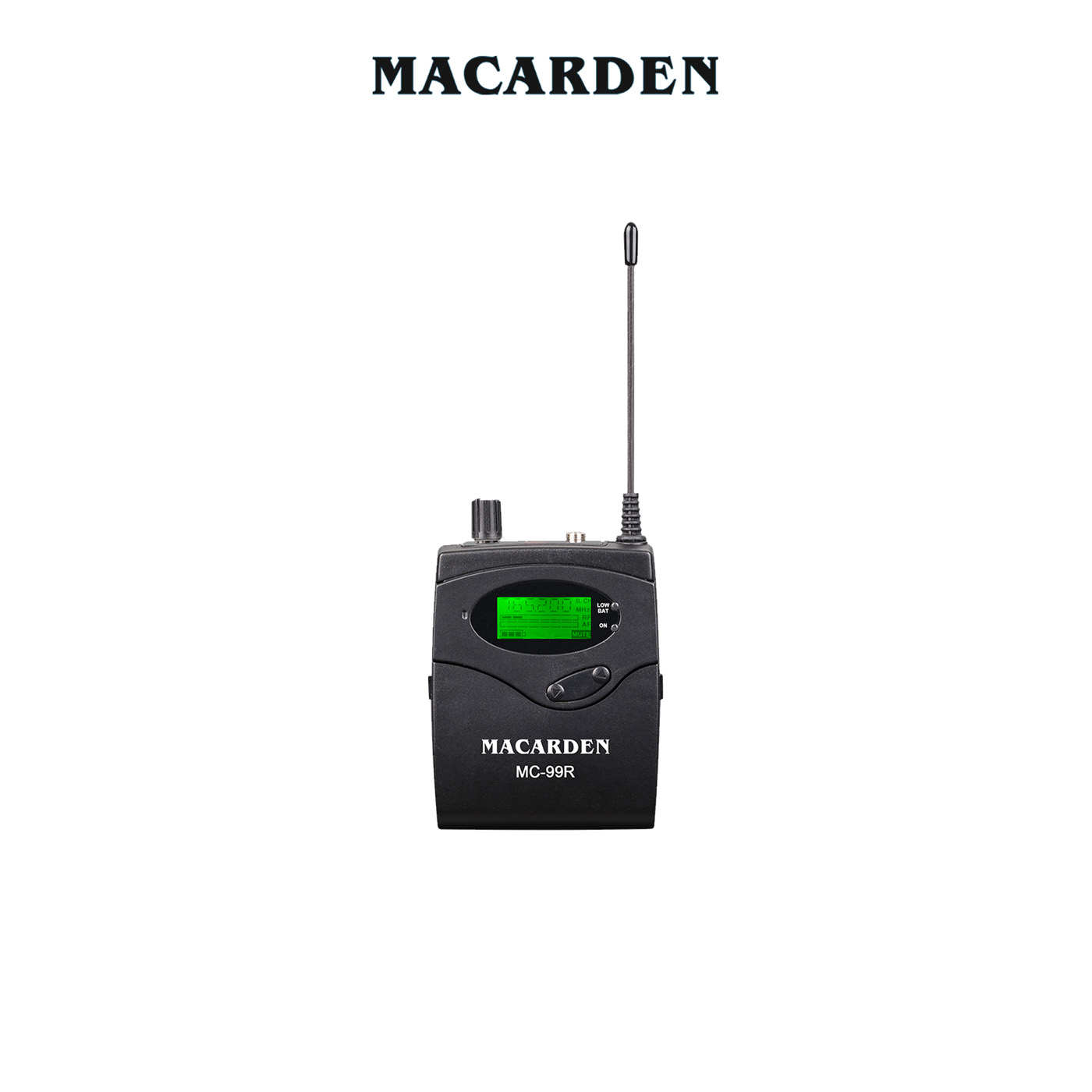

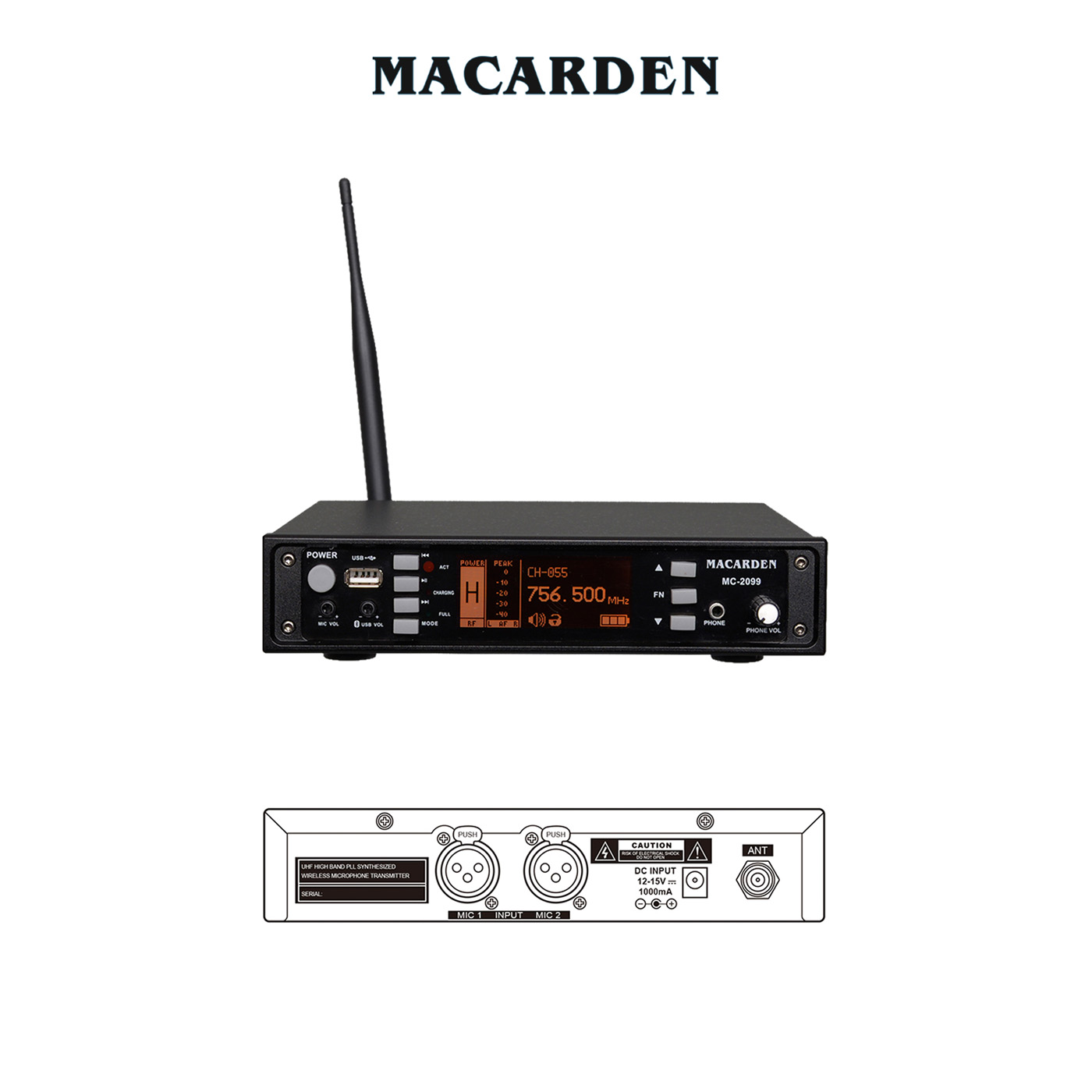

MC-2099/MC-99R

MAIN FEATURES

1. Using UHF 500-960MHz band to avert frequency interference.

2. One Transmitter can use unlimited body-pack receivers.

3. PLL circuit design, preset 100 non-interfered channels.

4. Automatic frequency scan feature searches for available frequencies.

5. Splendid LCD display, shows the RF level, AF level, channel and frequency.

6. Strong transmitter power, the distance can be reached 100 meters.

7. Half of 19 inch rack design, two systems can be connected for 19’’ rack.

8. Designed for professional stage use.

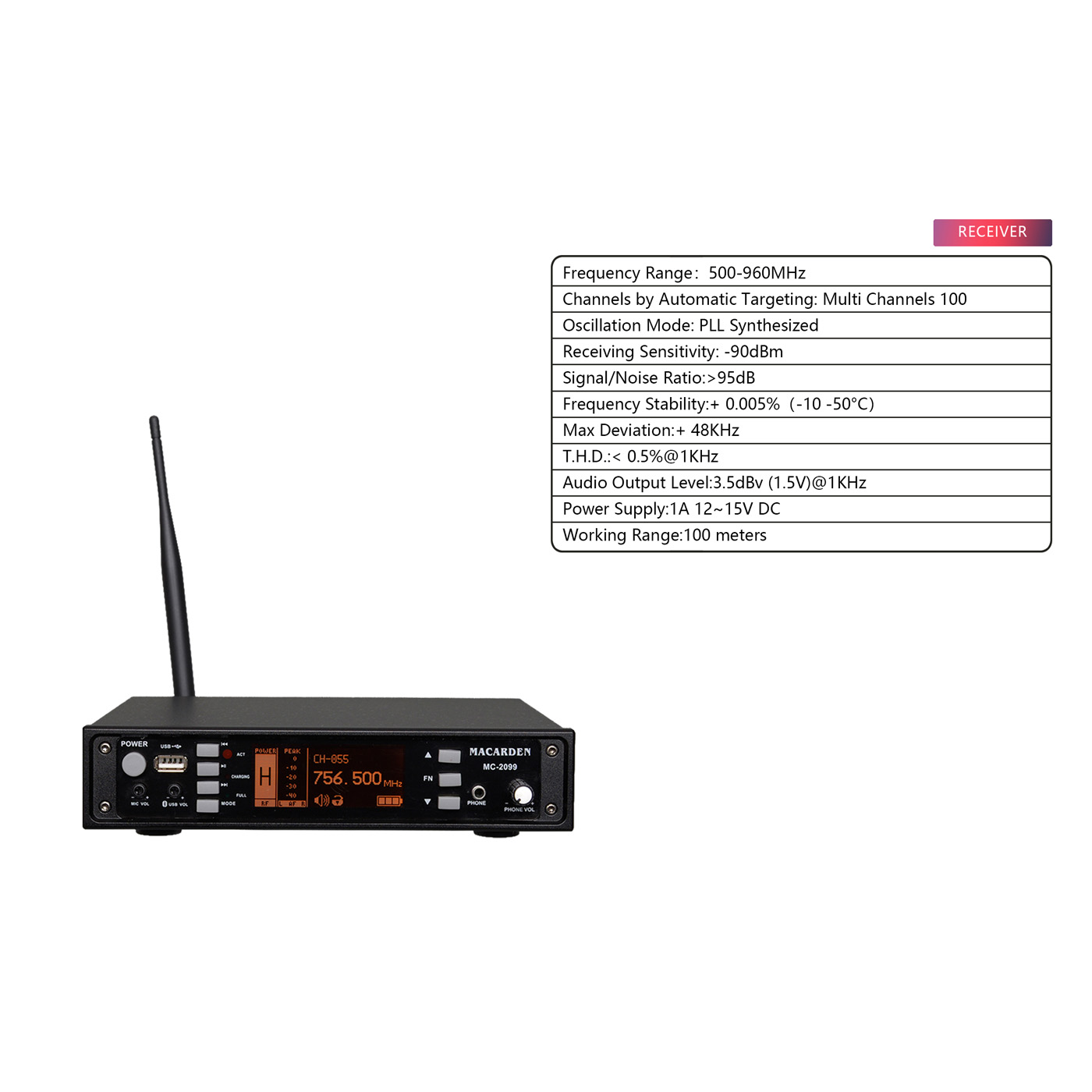

RECEIVER

Frequency Range：500-960MHz

Channels by Automatic Targeting: Multi Channels 100

Oscillation Mode: PLL Synthesized

Receiving Sensitivity: -90dBm

Signal/Noise Ratio:>95dB

Frequency Stability:+ 0.005%（-10 -50°C）

Max Deviation:+ 48KHz

T.H.D.:< 0.5%@1KHz

Audio Output Level:3.5dBv (1.5V)@1KHz

Power Supply:1A 12~15V DC

Working Range:100 meters

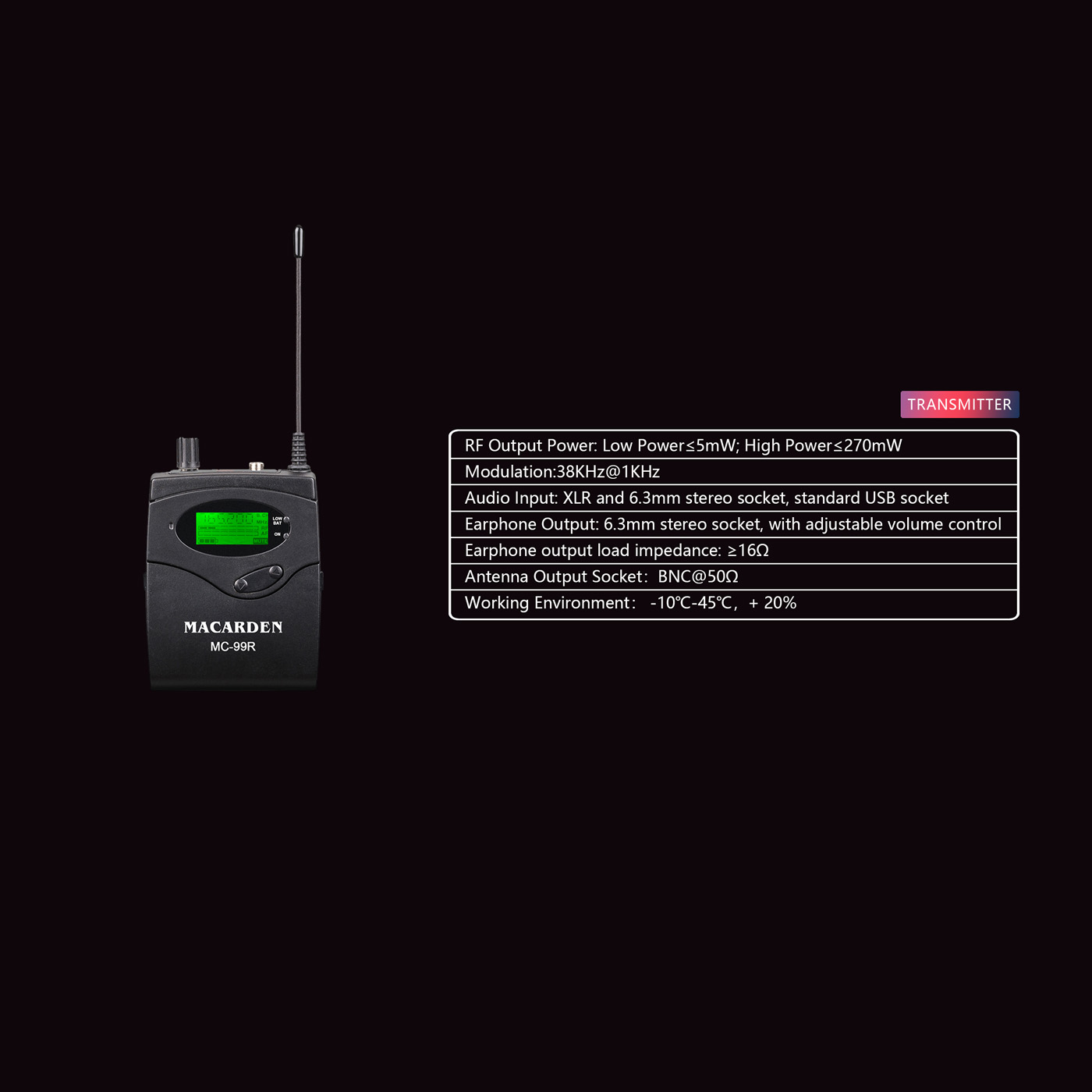

TRANSMITTER

RF Output Power: Low Power≤5mW; High Power≤270mW

Modulation:38KHz@1KHz

Audio Input: XLR and 6.3mm stereo socket, standard USB socket

Earphone Output: 6.3mm stereo socket, with adjustable volume control

Earphone output load impedance: ≥16Ω

Antenna Output Socket：BNC@50Ω

Working Environment： -10℃-45℃，+ 20%
