MC-99R/MC-99T

MAIN FEATURES

1. Professional Wireless Tour Guide System/Interview Design.
2. Adopt the PLL Synthesized control technique, preset 100 non-interfered channels.

3. Transfer data to transmitter by infrared.
4. Digital LCD information display
5. Using high gain antenna, the space availability is more than 60 meters at the clearing.

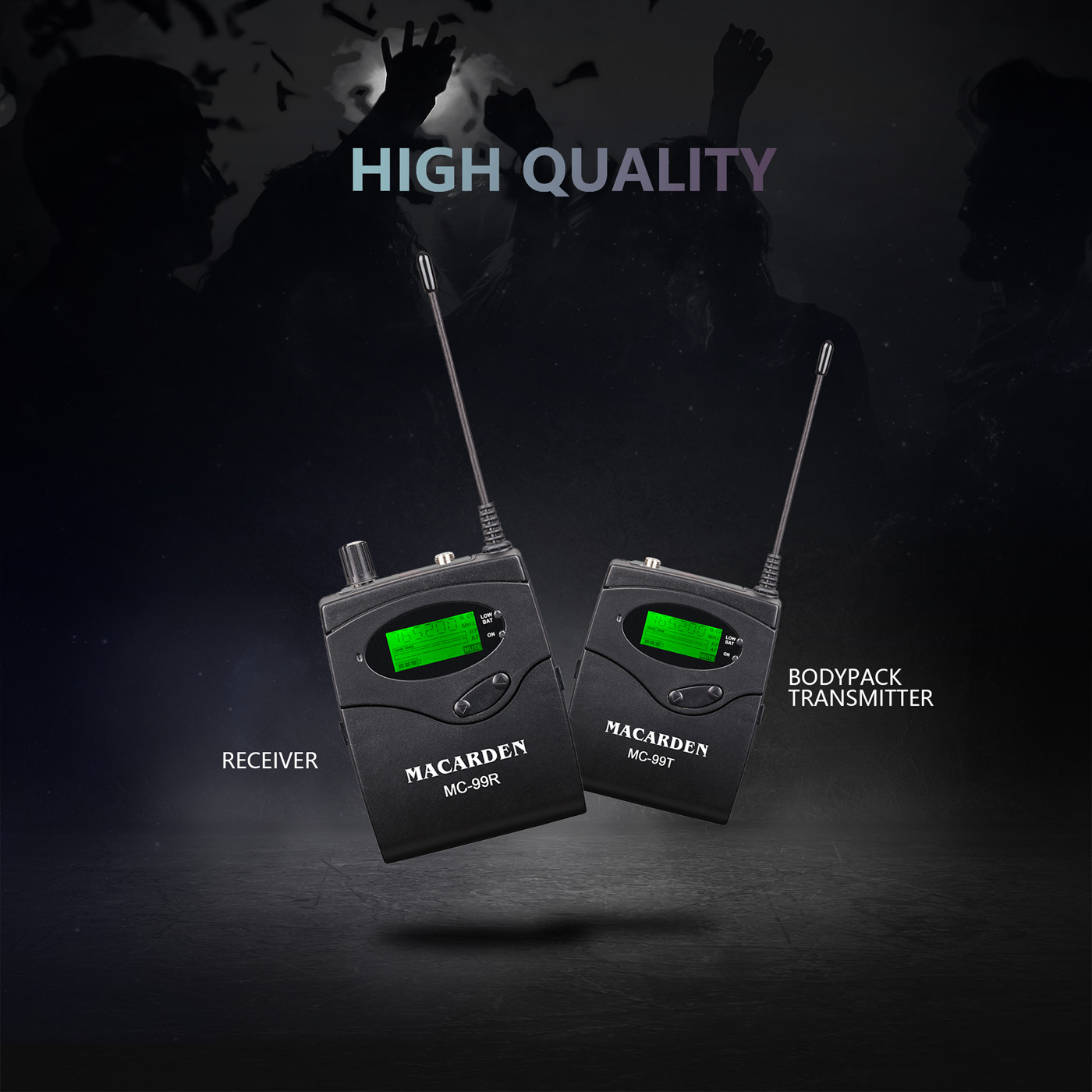

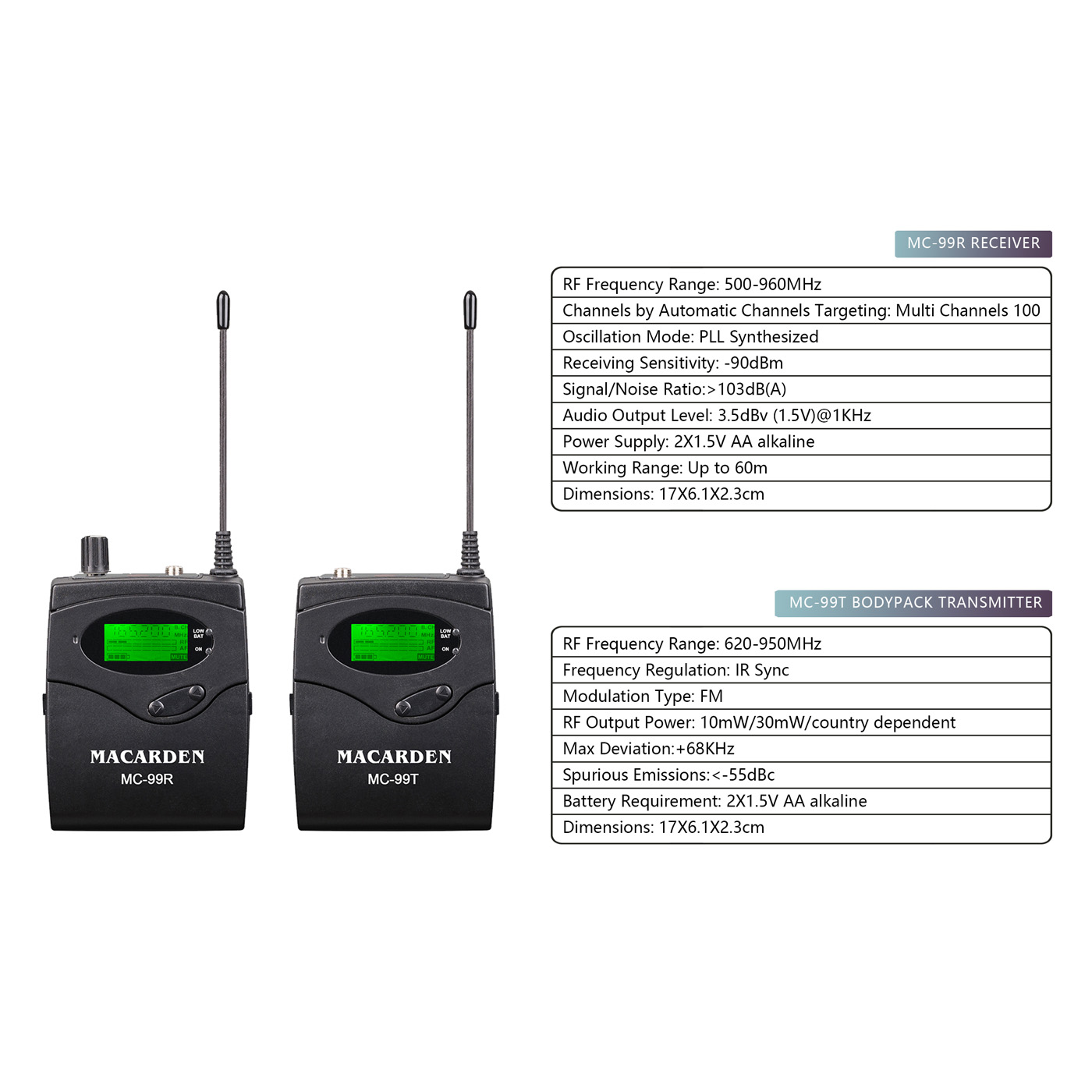

MC-99R RECEIVER

RF Frequency Range: 500-960MHz
Channels by Automatic Channels Targeting: Multi Channels 100
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Audio Output Level: 3.5dBv (1.5V)@1KHz
Power Supply: 2X1.5V AA alkaline
Working Range: Up to 60m
Dimensions: 17X6.1X2.3cm

MC-99T BODYPACK TRANSMITTER

RF Frequency Range: 620-950MHz
Frequency Regulation: IR Sync

Modulation Type: FM
RF Output Power: 10mW/30mW/country dependent
Max Deviation:+68KHz
Spurious Emissions:<-55dBc
Battery Requirement: 2X1.5V AA alkaline
Dimensions: 17X6.1X2.3cm
