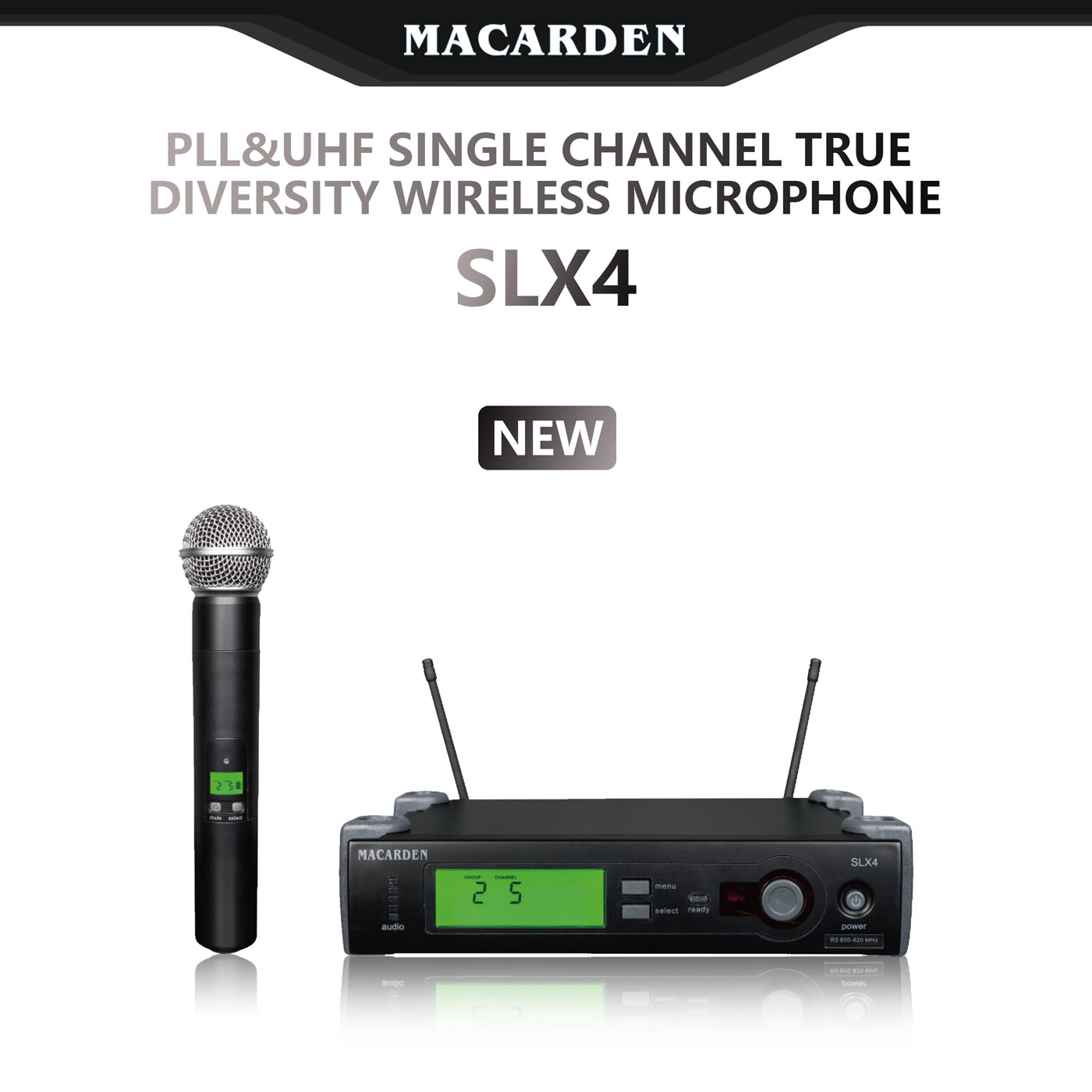

SLX4

MAIN FEATURE

1. True diversity dual channel operation, 99 select-able UHF channel, automatic to select the signal, to improve the receiving effect, effectively clear up the signal blind spot in using.

2. Automatic frequency scan feature searches for available frequencies.

3. Transfer datas to transmitter by infrared.

4. Ideal distance up to 100 meters in ideal condition.

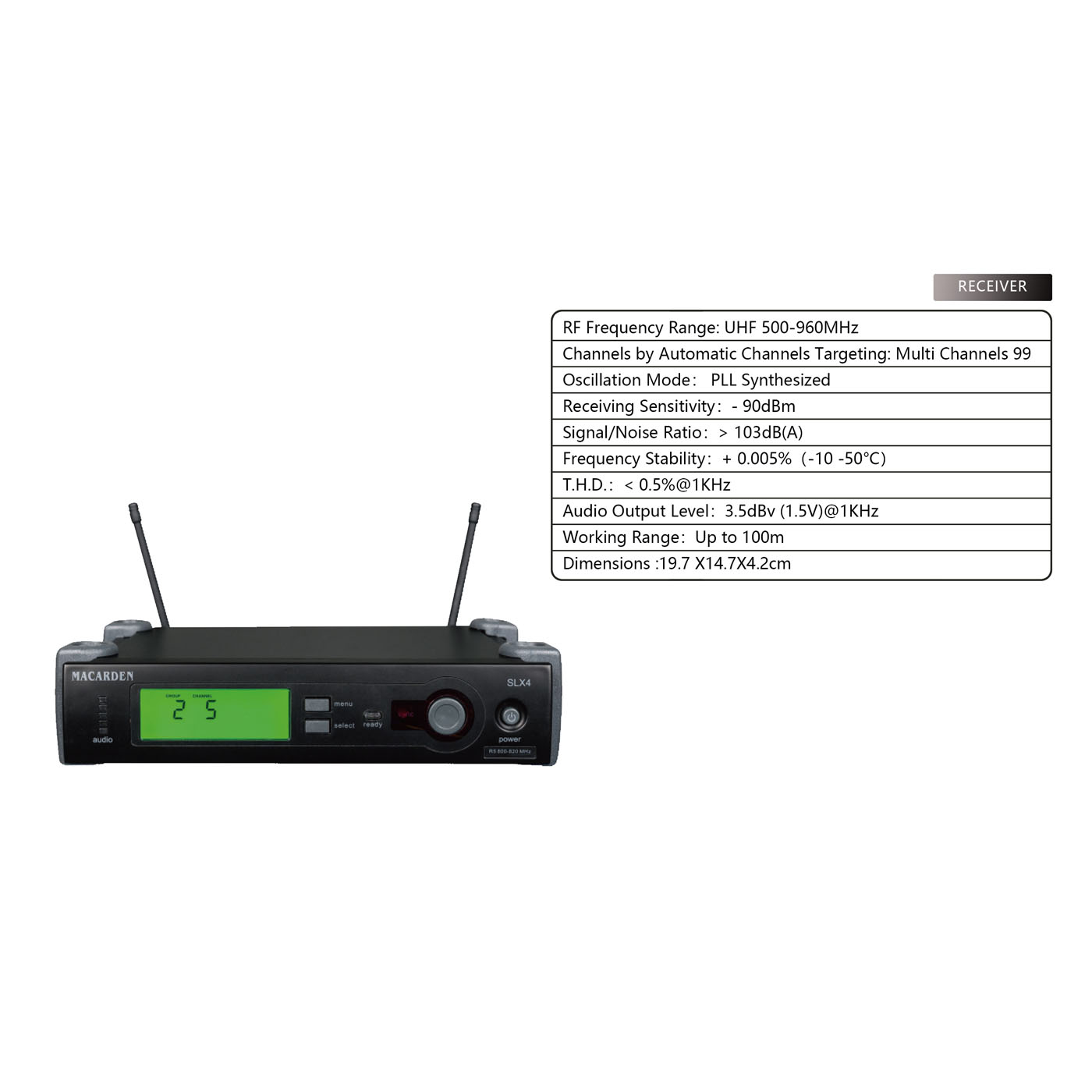

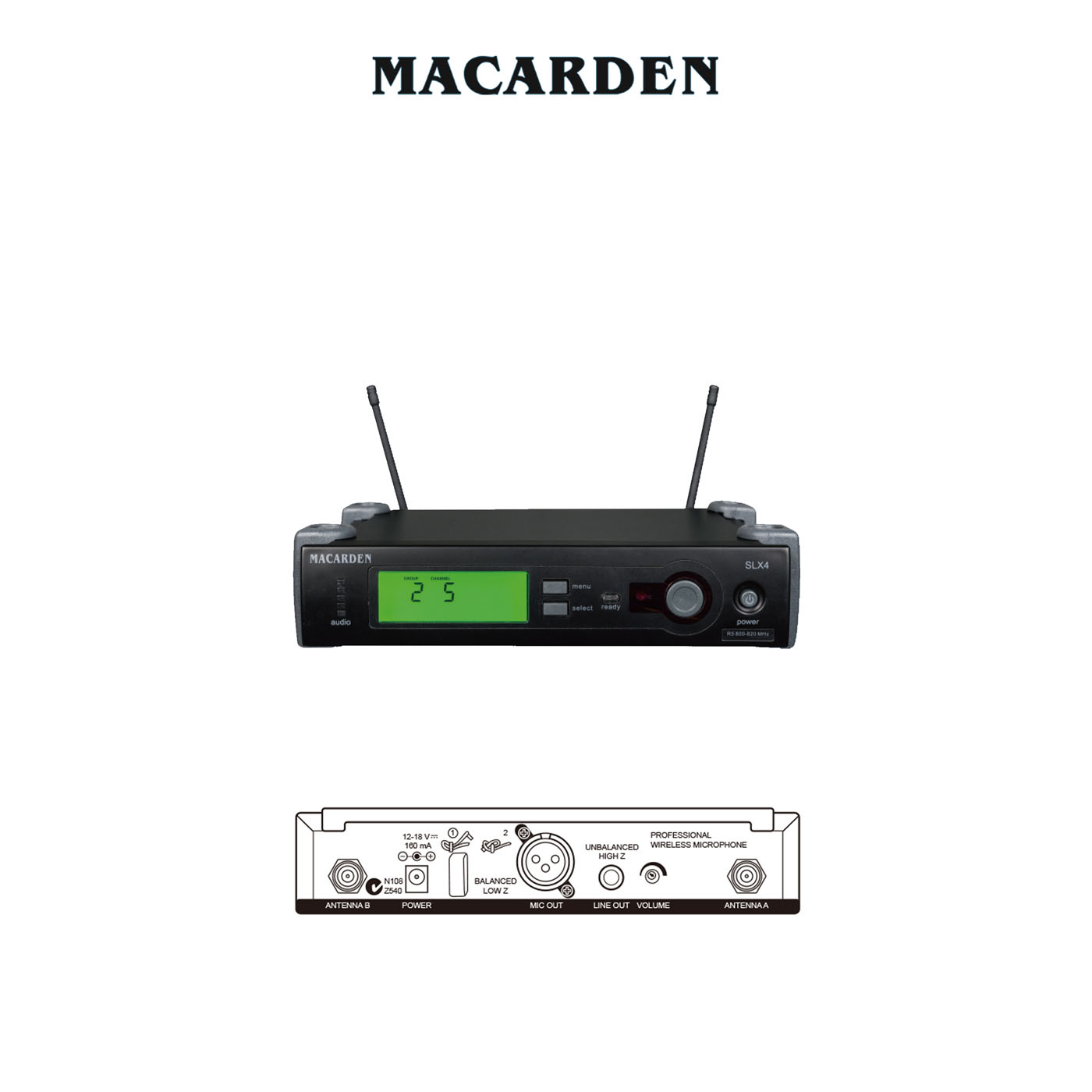

RECEIVER

RF Frequency Range: UHF 500-960MHz

Channels by Automatic Channels Targeting: Multi Channels 99

Oscillation Mode： PLL Synthesized

Receiving Sensitivity：- 90dBm

Signal/Noise Ratio：> 103dB(A)

Frequency Stability：+ 0.005%（-10 -50°C）

T.H.D.：< 0.5%@1KHz

Audio Output Level：3.5dBv (1.5V)@1KHz

Working Range：Up to 100m

Dimensions :19.7 X14.7X4.2cm

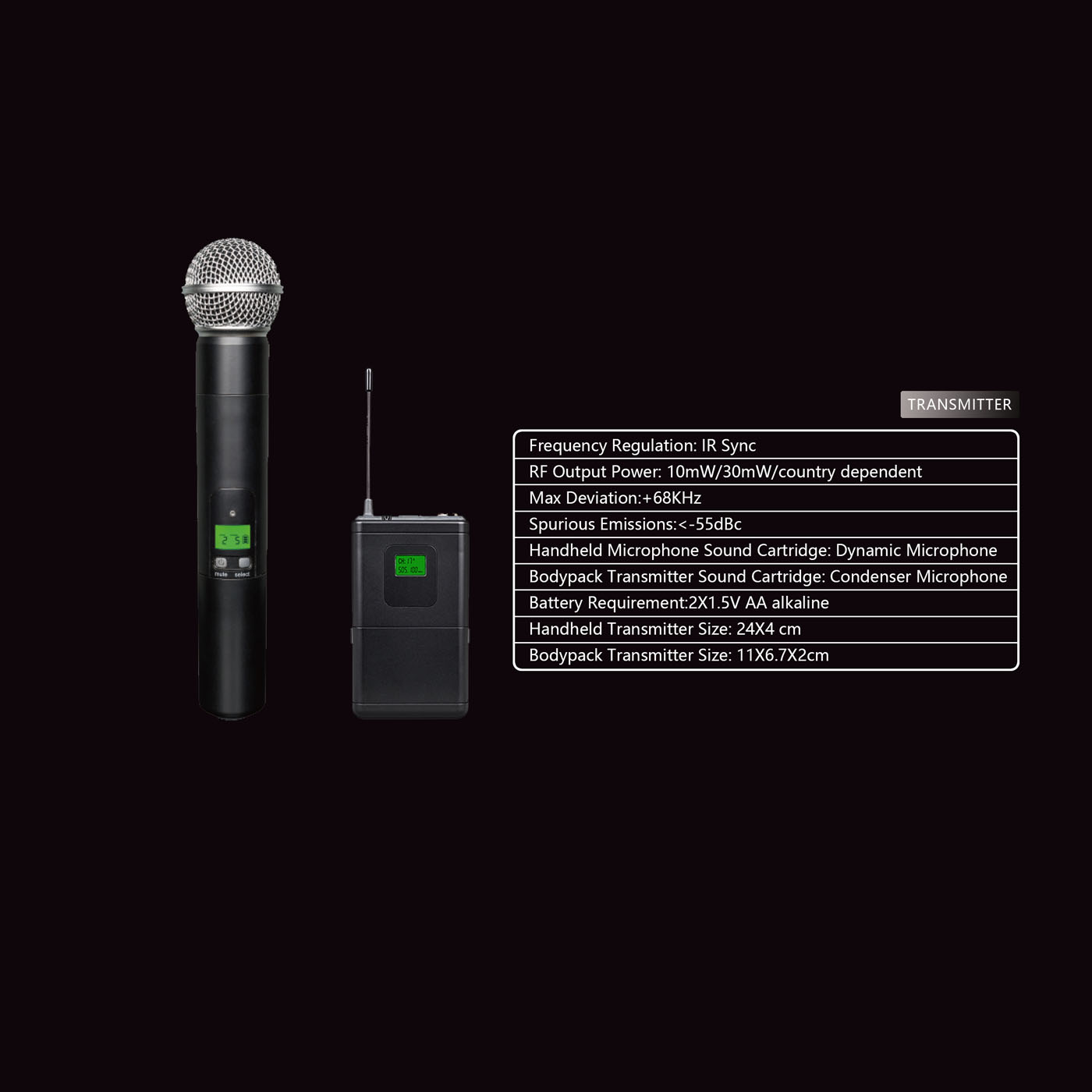

TRANSMITTER

Frequency Regulation: IR Sync

RF Output Power: 10mW/30mW/country dependent

Max Deviation:+68KHz

Spurious Emissions:<-55dBc

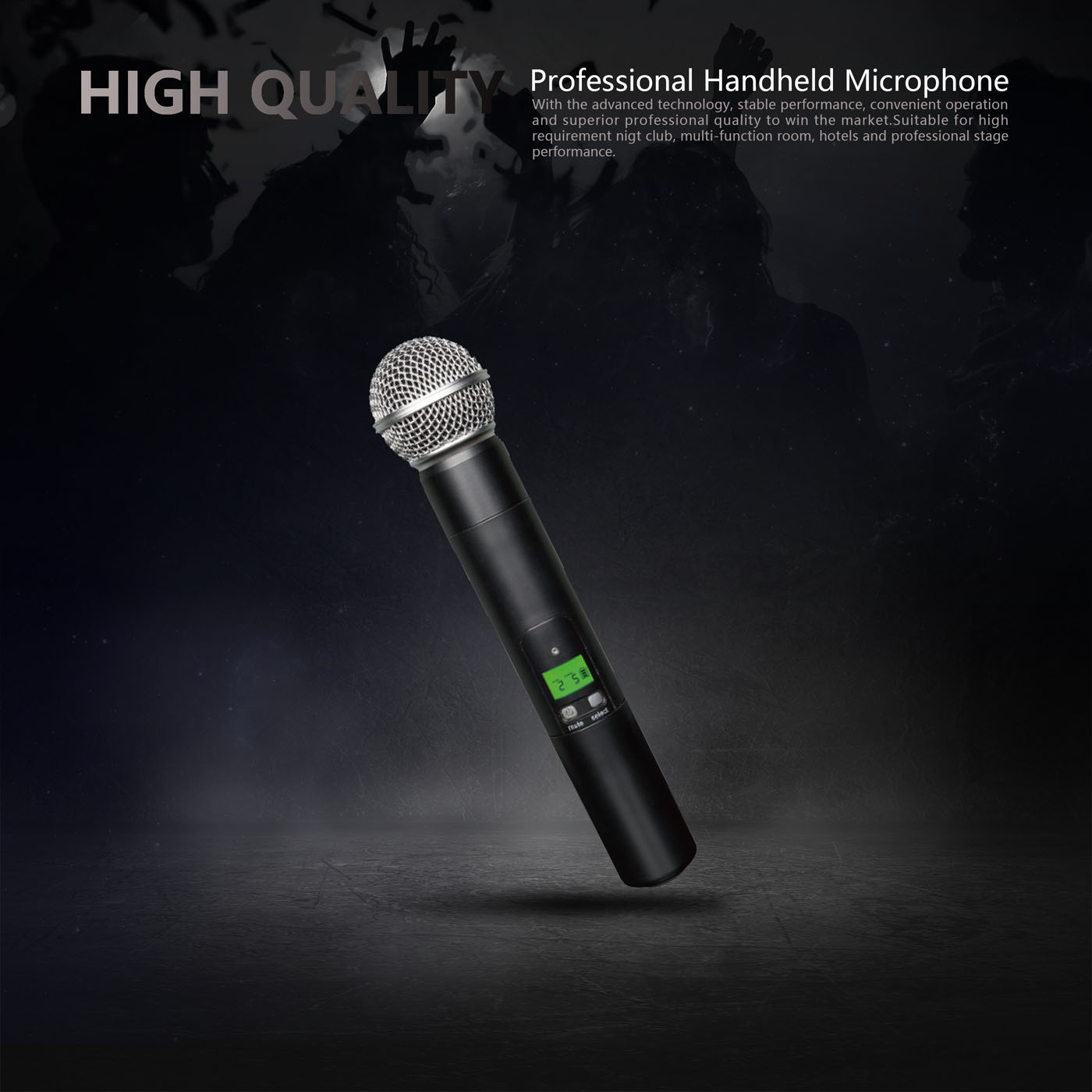

Handheld Microphone Sound Cartridge: Dynamic Microphone

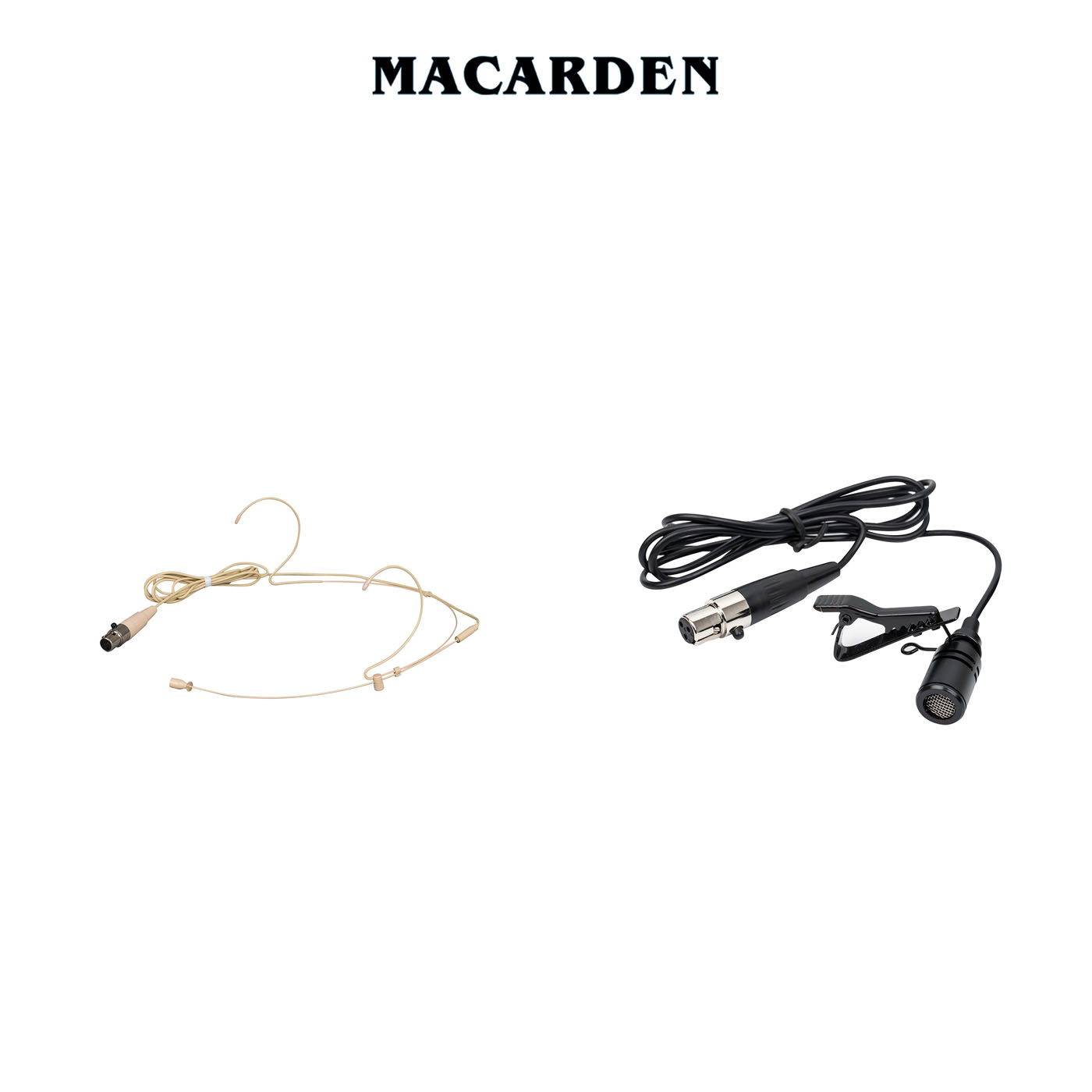

Bodypack Transmitter Sound Cartridge: Condenser Microphone

Battery Requirement:2X1.5V AA alkaline

Handheld Transmitter Size: 24X4 cm

Bodypack Transmitter Size: 11X6.7X2cm
