MC-9001

MC-9001

MAIN FEATURES

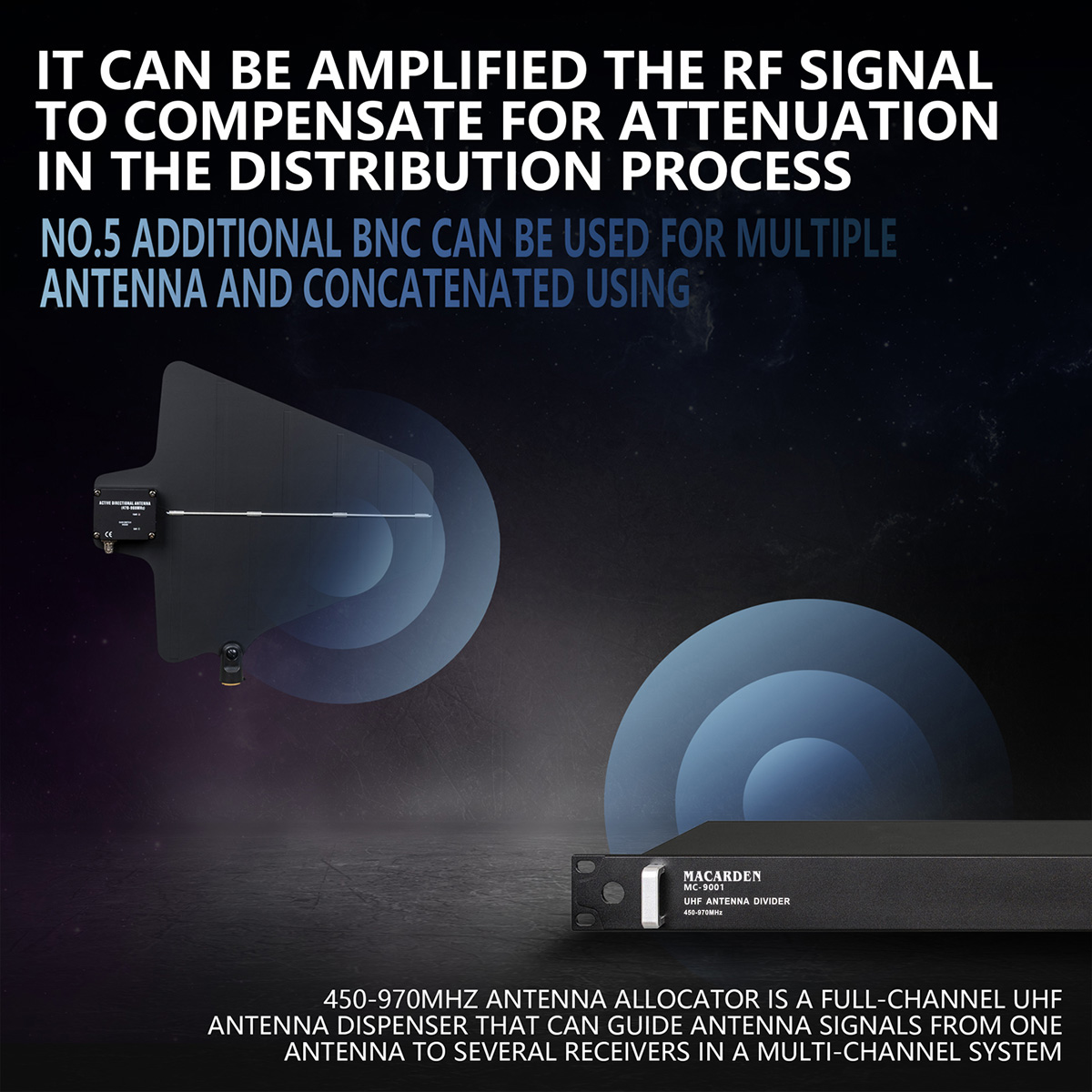

1. 450-970MHZ antenna allocator is a full-channel UHF antenna dispenser that can guide antenna signals from one antenna to several receivers in a multi-channel system.

2. It can be amplified the RF signal to compensate for attenuation in the distribution process.

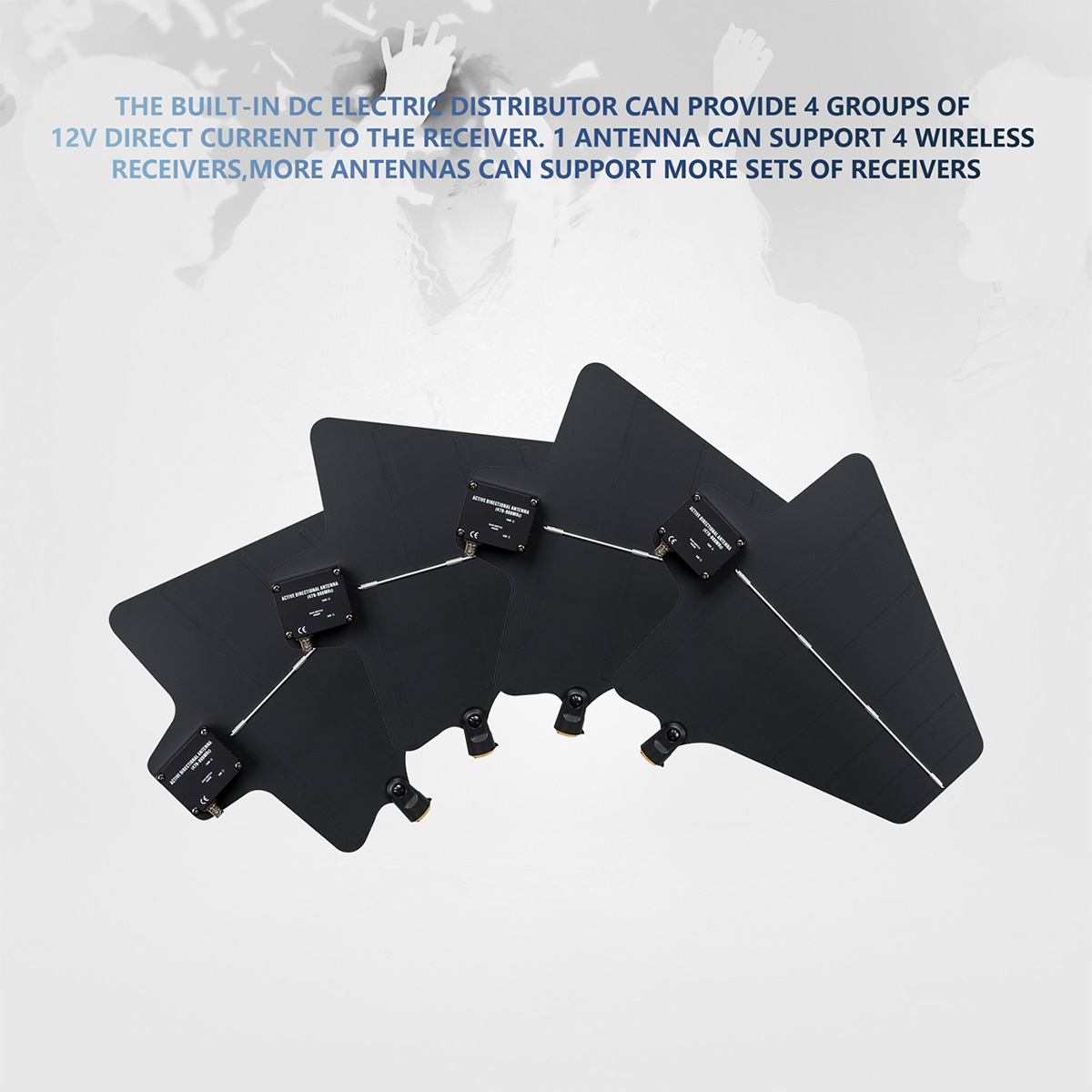

3. The built-in DC electric distributor can provide 4 groups of 12V direct current to the receiver. 1 antenna can support 4 wireless receivers, more antennas can support more sets of receivers.

4. NO.5 additional BNC can be used for multiple antenna and concatenated using.

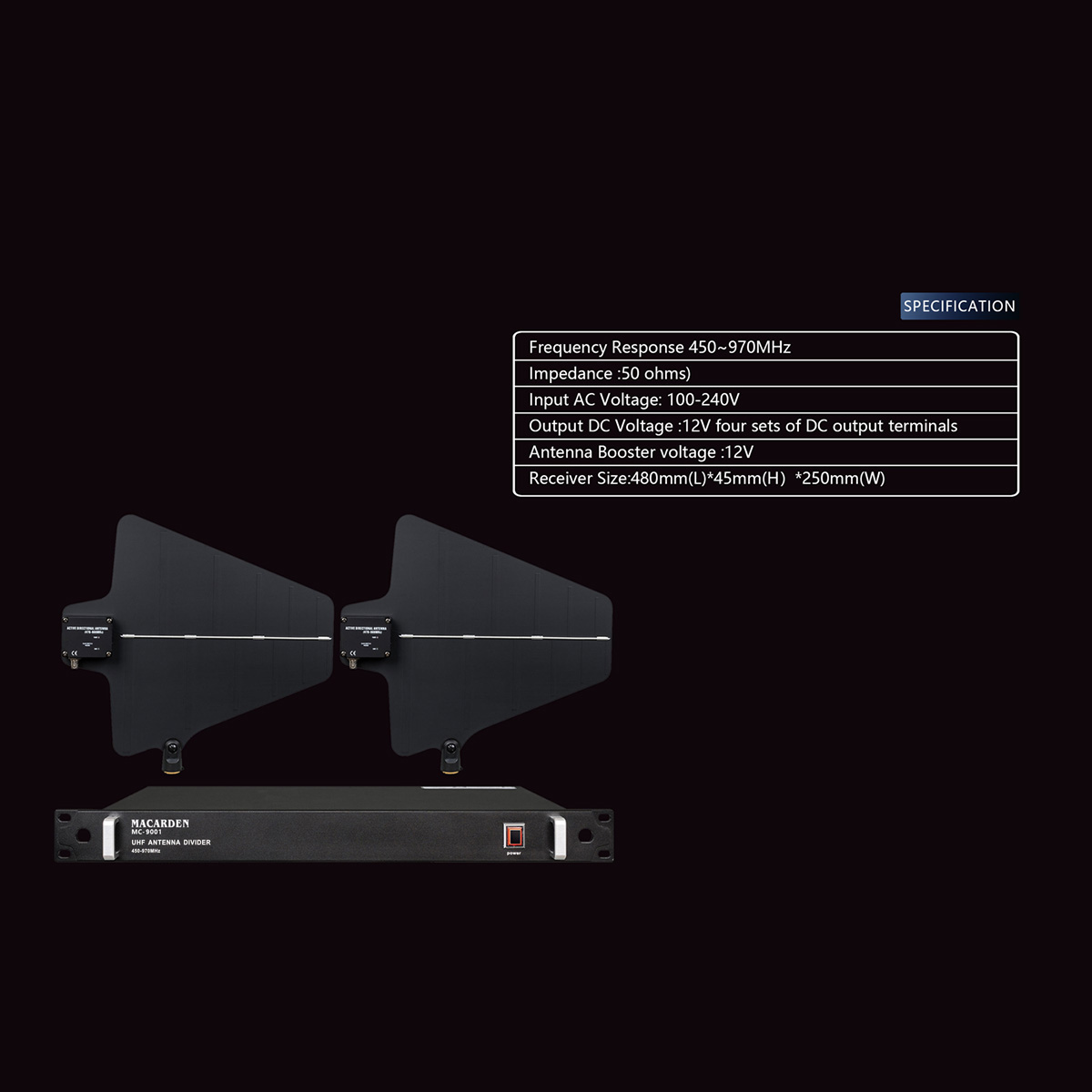

Specification

Frequency Response 450~970MHz

Impedance :50 ohms)

Input AC Voltage: 100-240V

Output DC Voltage :12V four sets of DC output terminals

Antenna Booster voltage :12V

Receiver Size:480mm(L)*45mm(H)*250mm(W)
