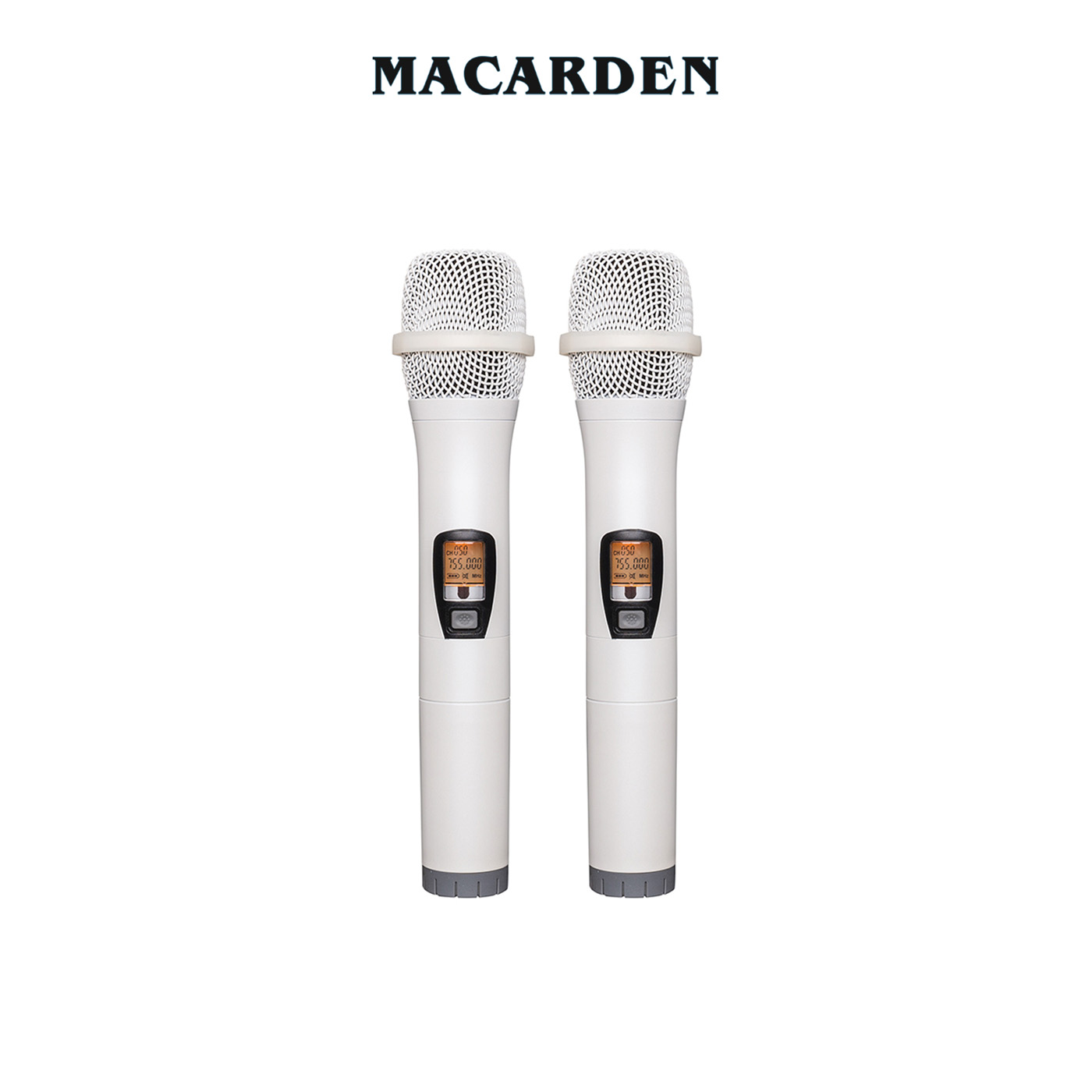

MC-929

MAIN FEATURE

1. Using UHF 500-960MHz band to avert interfering frequency.
2. It can adjust the power (High/Low) in the transmitter.
3. It provides gorgeous UHF sound quality, and can access up to 200 different channels per microphone.
4. It has reliable auto-scan frequency pairing and PLL function to keep away from any interfere environment.

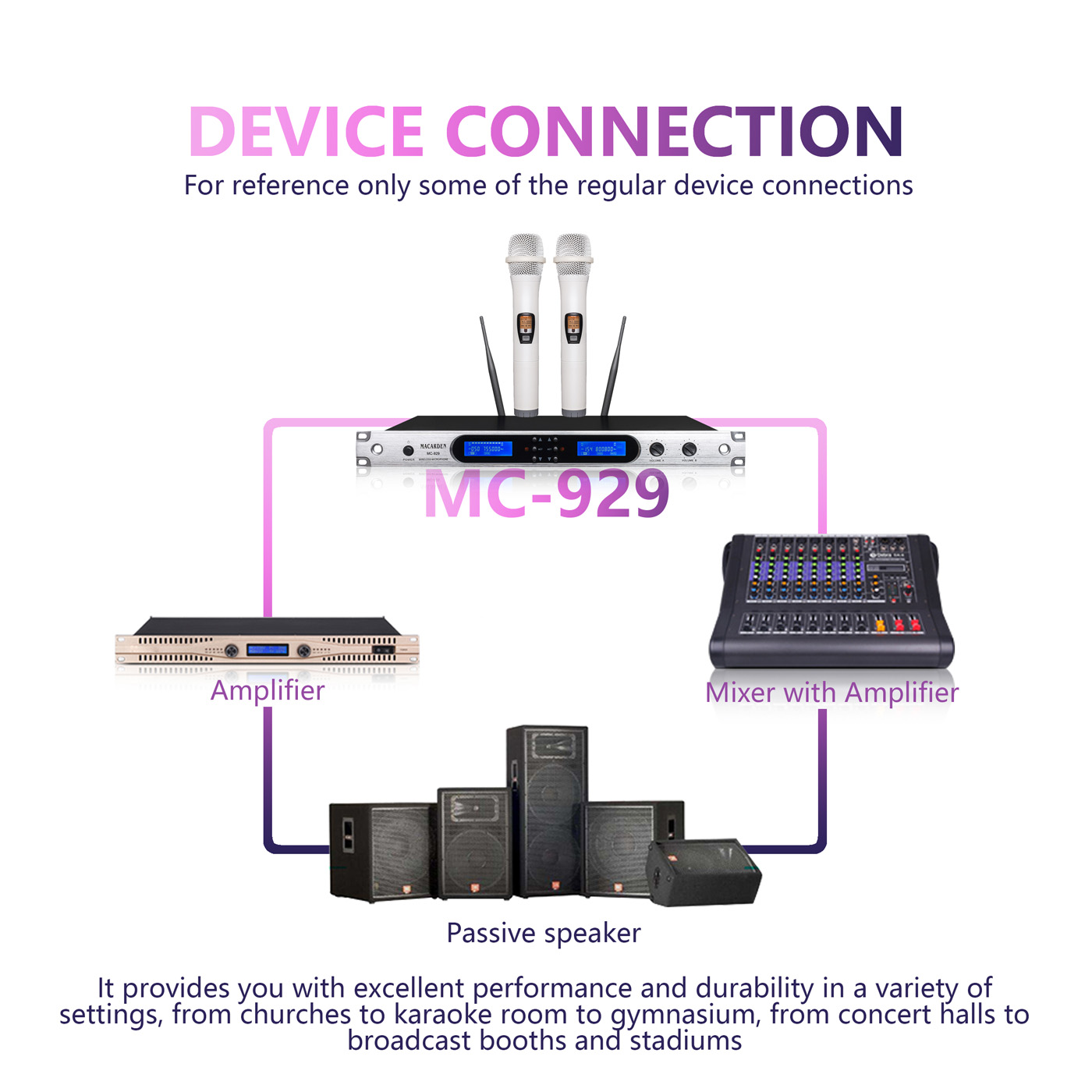

5.  It provides you with excellent performance and durability in a variety of settings, from churches to karaoke room to gymnasium, from concert halls to broadcast booths and stadiums.
6.Using high gain antenna, the space avaiability is more than 100 meters at the clearing.

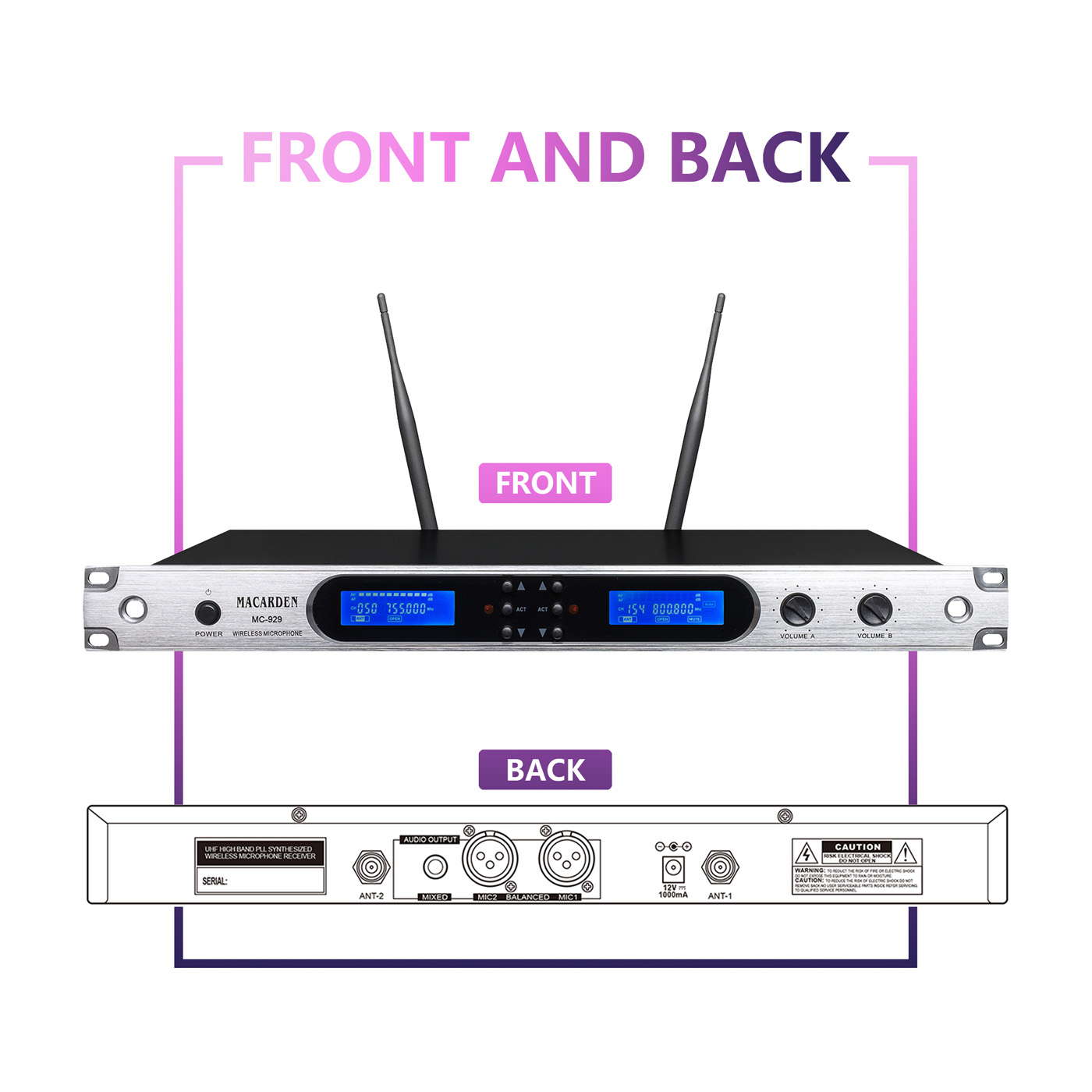

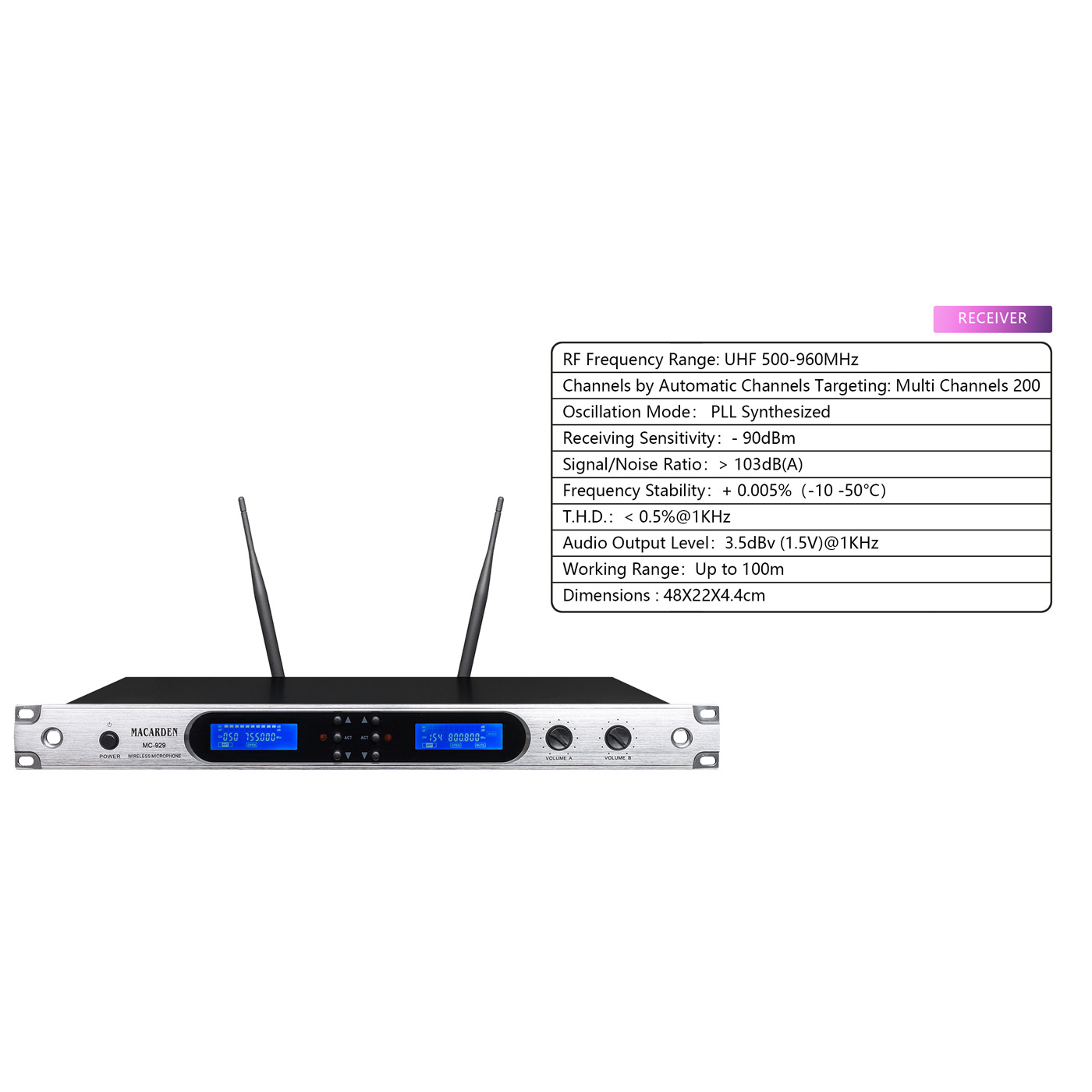

RECEIVER

RF Frequency Range: UHF 500-960MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity:- 90dBm
Signal/Noise Ratio:> 103dB(A)
Frequency Stability:+ 0.005%(-10 -50°C)
T.H.D.:< 0.5%@1KHz
Audio Output Level:3.5dBv (1.5V)@1KHz
Working Range:Up to 100m
Dimensions : 48X22X4.4cm

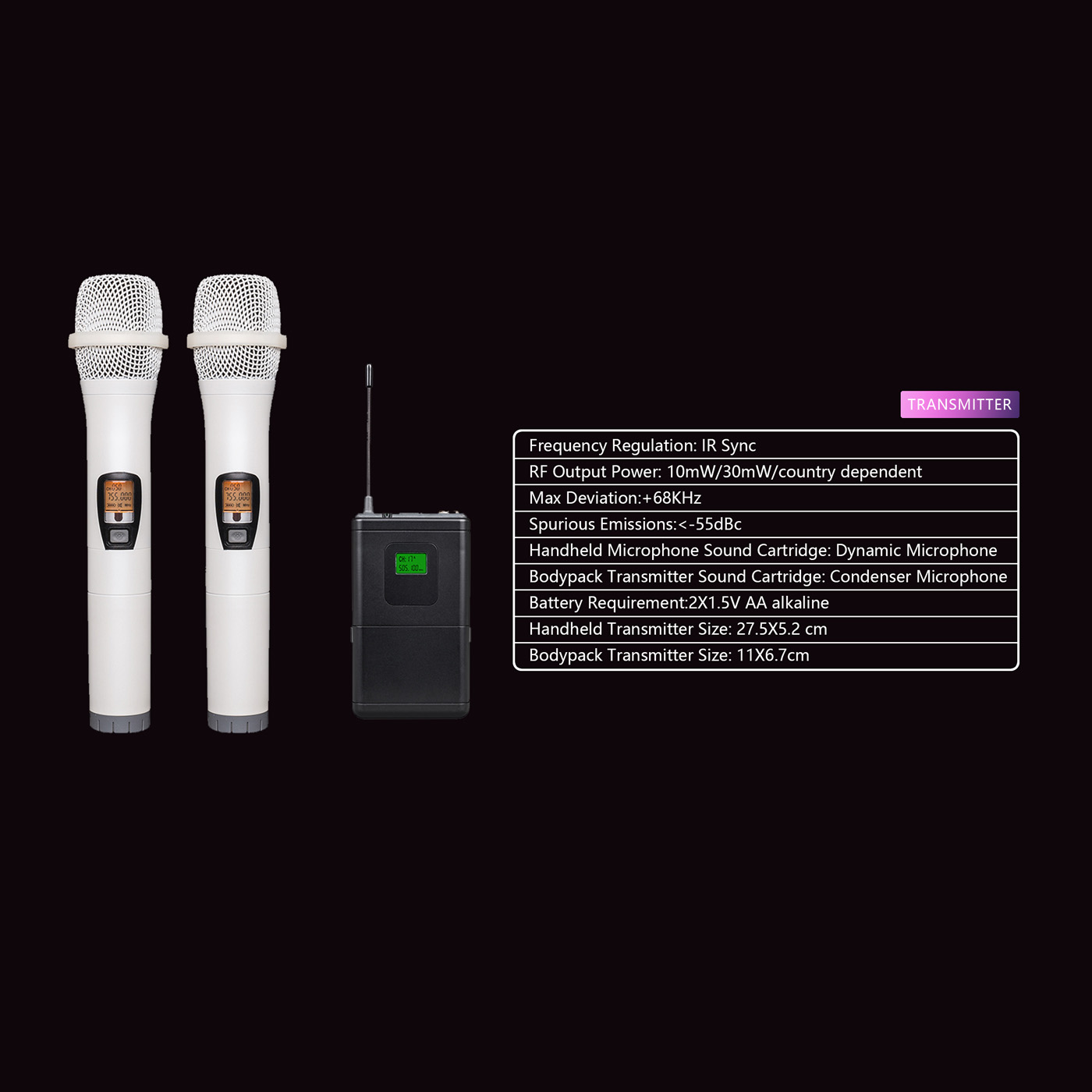

TRANSMITTER

Frequency Regulation: IR Sync
RF Output Power: 10mW/30mW/country dependent
Max Deviation:+68KHz
Spurious Emissions:<-55dBc

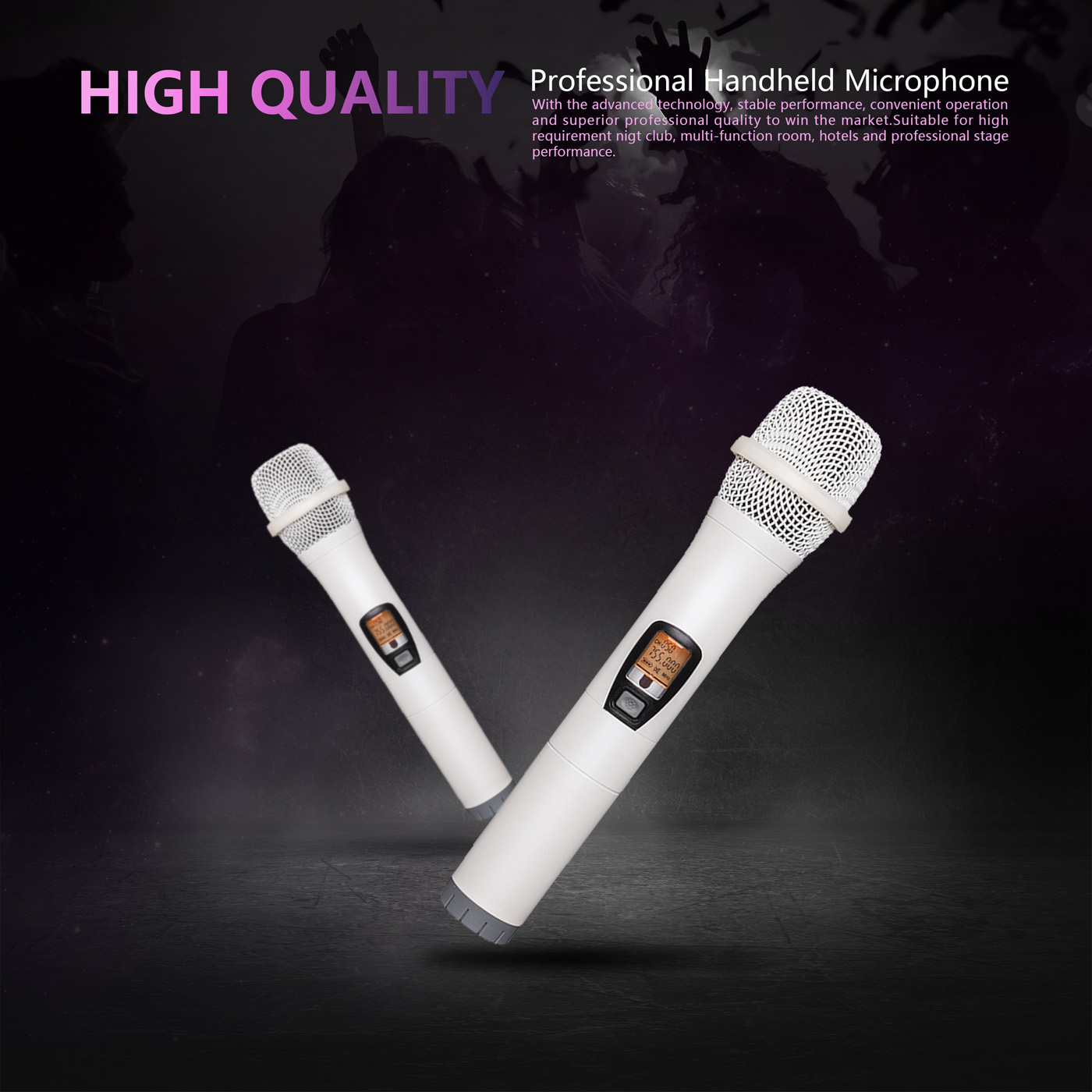

Handheld Microphone Sound Cartridge: Dynamic Microphone

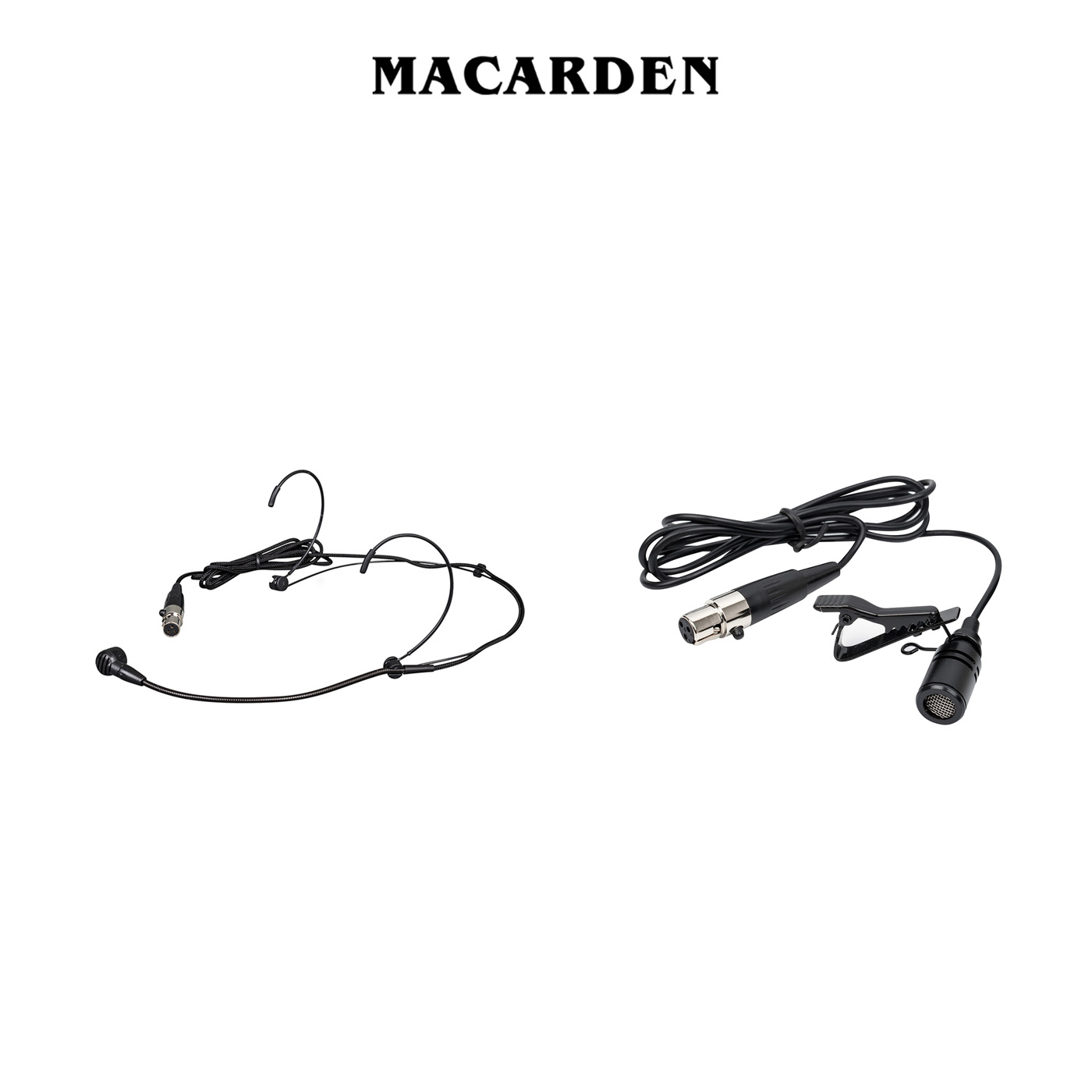

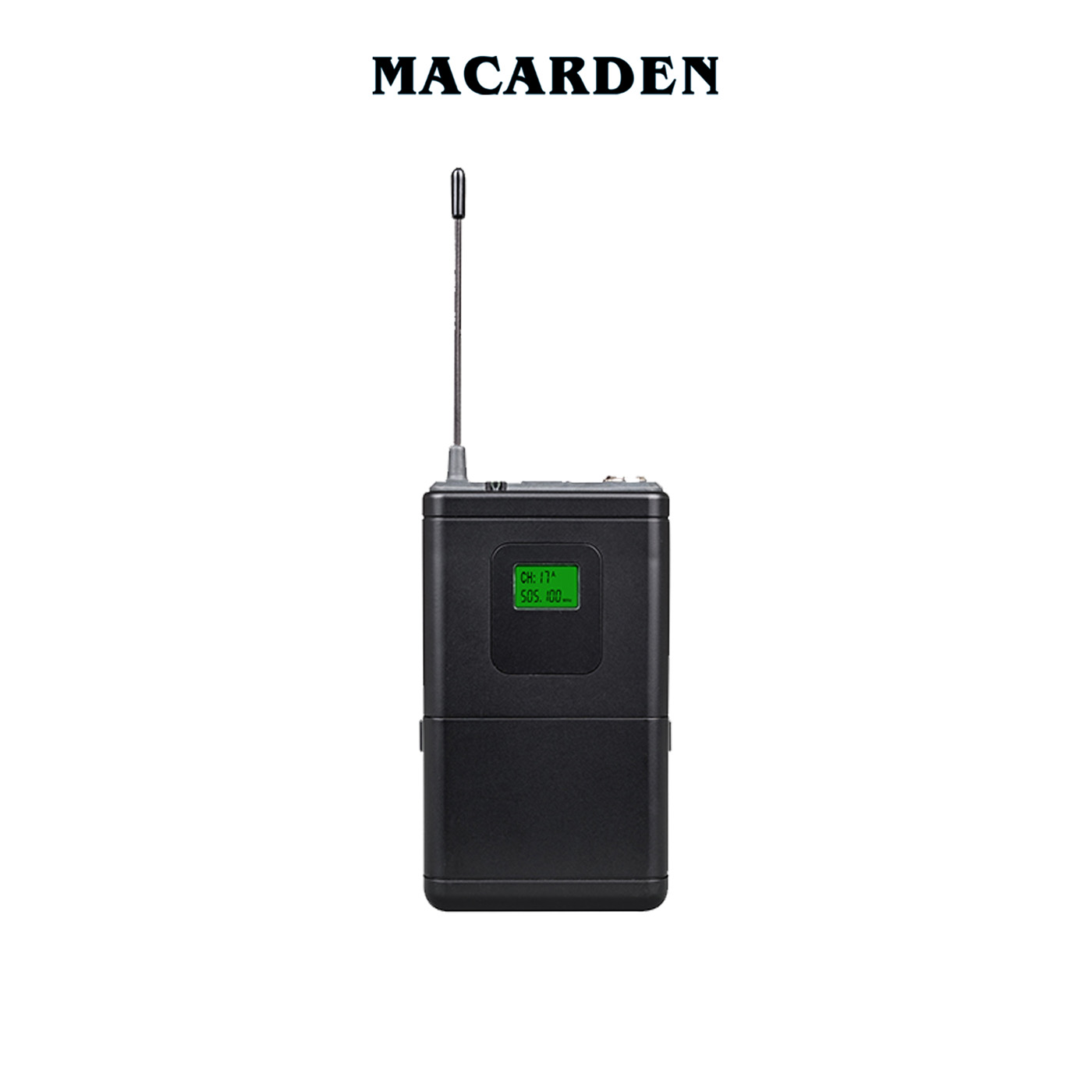

Bodypack Transmitter Sound Cartridge: Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
Handheld Transmitter Size: 27.5X5.2 cm
Bodypack Transmitter Size: 11X6.7cmX2cm
